The JSS-4A is one of two handheld options that are designed for use with the JTS R-4 wireless systems.

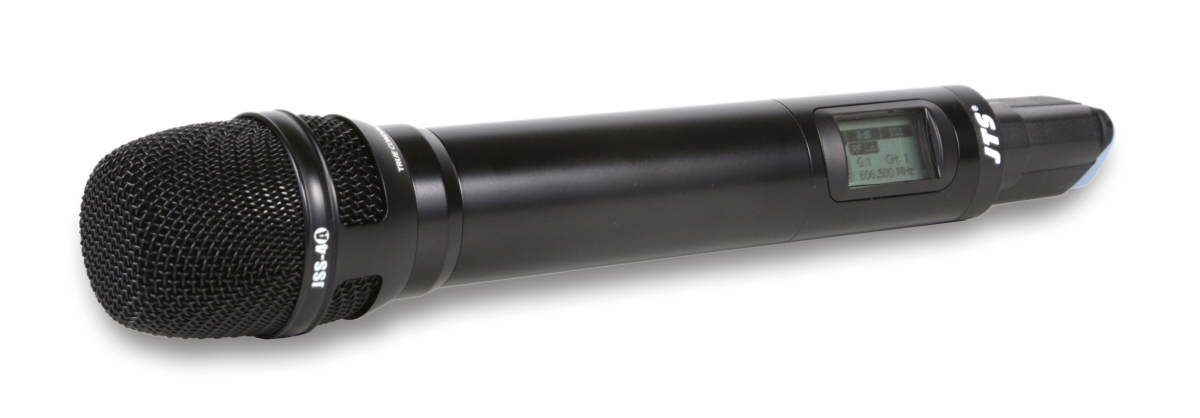

The JSS-4A is a handheld microphone fitted with a JTS TC-22 True Condenser Capsule.
JSS-4A
UHF PLL Condenser Handheld Transmitter (TC-22 Capsule & Metal Housing)
The JSS-4A handheld transmitter is designed to be used with the R-4 4 channel receiver. It is fitted with our new TC-22 condenser capsule which gives impeccable audio and excellent pick up pattern whilst having class leading feedback rejection.
*Available in 606.5 - 638 MHz or 823 - 865 MHz
SKU: 81134
EAN: 4712933610510
Commodity Code: 8518100090
Country of Origin: Taiwan
PRODUCT DESCRIPTION
KEY FEATURES
* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Extended dynamic range and smooth frequency response.
* Adjustable transmission power between Low and High
* The panel Lock-On function prevents tampering and RF interruption
* Together with JTS various capsules preferred miking is assured.
* Condenser Capsule (TC-22) fitted on the JSS-4A
* Condenser Capsule (TC-22) fitted on the JSS-4A
NEWEST FEATURE:
* It is designed with a slot-in charging feature when fitted with two AA NiMH rechargeable batteries.
SPECIFICATIONS
Net Dimension (WxHxD):
50 x 253 x 35.5mm
Net Weight:
93g
Frequency Preparation:
PLL Synthesized Control
Controls:
Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
RF Outputs:
High/Low
Frequency Deviation:
±48KHz (Peak)
Spurious Emissions:
< -50dBC
Battery:
UM3, AA x2
Carrier Frequency Range:
Options of 606.5 - 638MHz or 823 - 865MHz
Audio Frequency Response:
50Hz - 18kHz
Stability:
< ±10KHz
Chassis:
Aluminium Alloy
LCD Display:
Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Capsule:
TC-22 Dynamic Capsule Fitted
