The JSS-4B is one of two handheld options that are designed for use with the JTS R-4 wireless systems.
The JSS-4B is a handheld microphone fitted with a JTS SAM-8WLN Dynamic Capsule.

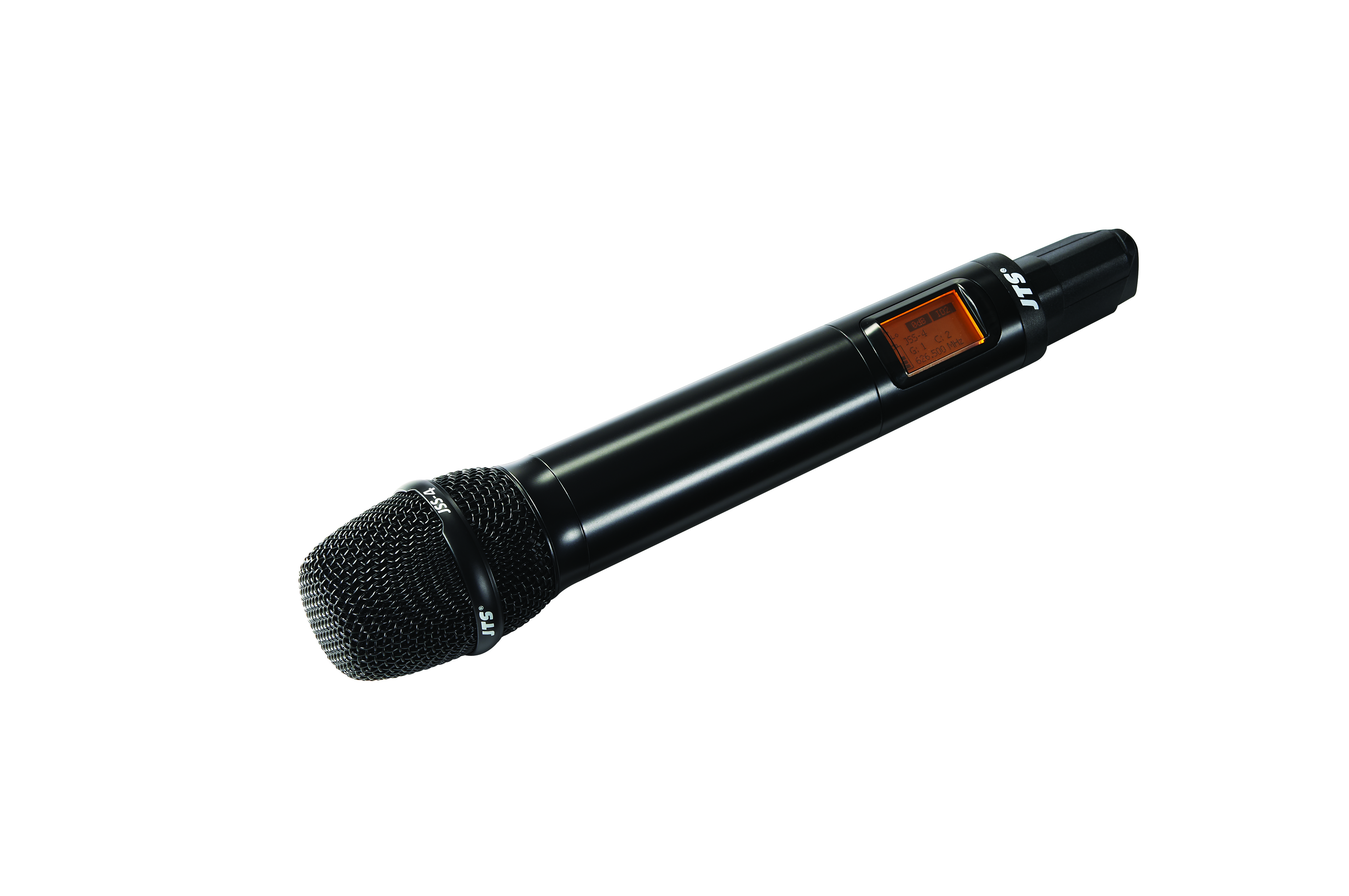

JSS-4B
UHF PLL Dynamic Handheld Transmitter (SAM-8 Capsule)
The JSS-4B handheld transmitter is designed to be used with the R-4 4 channel receiver. It is fitted with our legendary SAM-8WLN dynamic capsule which gives very full and rich audio with an excellent pick up pattern. As with all JTS microphones, feedback rejection is class leading.
*Available in 606.5 - 638 MHz 0r 823-865 MHz
SKU: 81141
EAN: 4712933610527
HS Code: 8518100090
Country of Origin: Taiwan
PRODUCT DESCRIPTION
KEY FEATURES
* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Extended dynamic range and smooth frequency response.
* Adjustable transmission power between Low and High
* The panel Lock-On function prevents tampering and RF interruption
* Together with JTS various capsules preferred miking is assured.
* The JSS-4B is a handheld microphone fitted with a JTS SAM-8WLN Dynamic Capsule.
* The JSS-4B is a handheld microphone fitted with a JTS SAM-8WLN Dynamic Capsule.
NEWEST FEATURE:
* It is designed with a slot-in charging feature when fitted with two AA NiMH rechargeable batteries.
SPECIFICATIONS
Net Dimension (WxHxD):
50 x 253 x 35.5mm
Net Weight:
93g
Frequency Preparation:
PLL Synthesized Control
Controls:
Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
RF Outputs:
High/Low
Frequency Deviation:
± 48KHz (Peak)
Spurious Emissions:
< -50dBC
Battery:
UM3, AA x2
Carrier Frequency Range:
Options of 606.5 - 638MHz or 823 - 865MHz
Audio Frequency Response:
50Hz - 18kHz
Stability:
< ±10KHz
Chassis:
Aluminium Alloy
LCD Display:
Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
