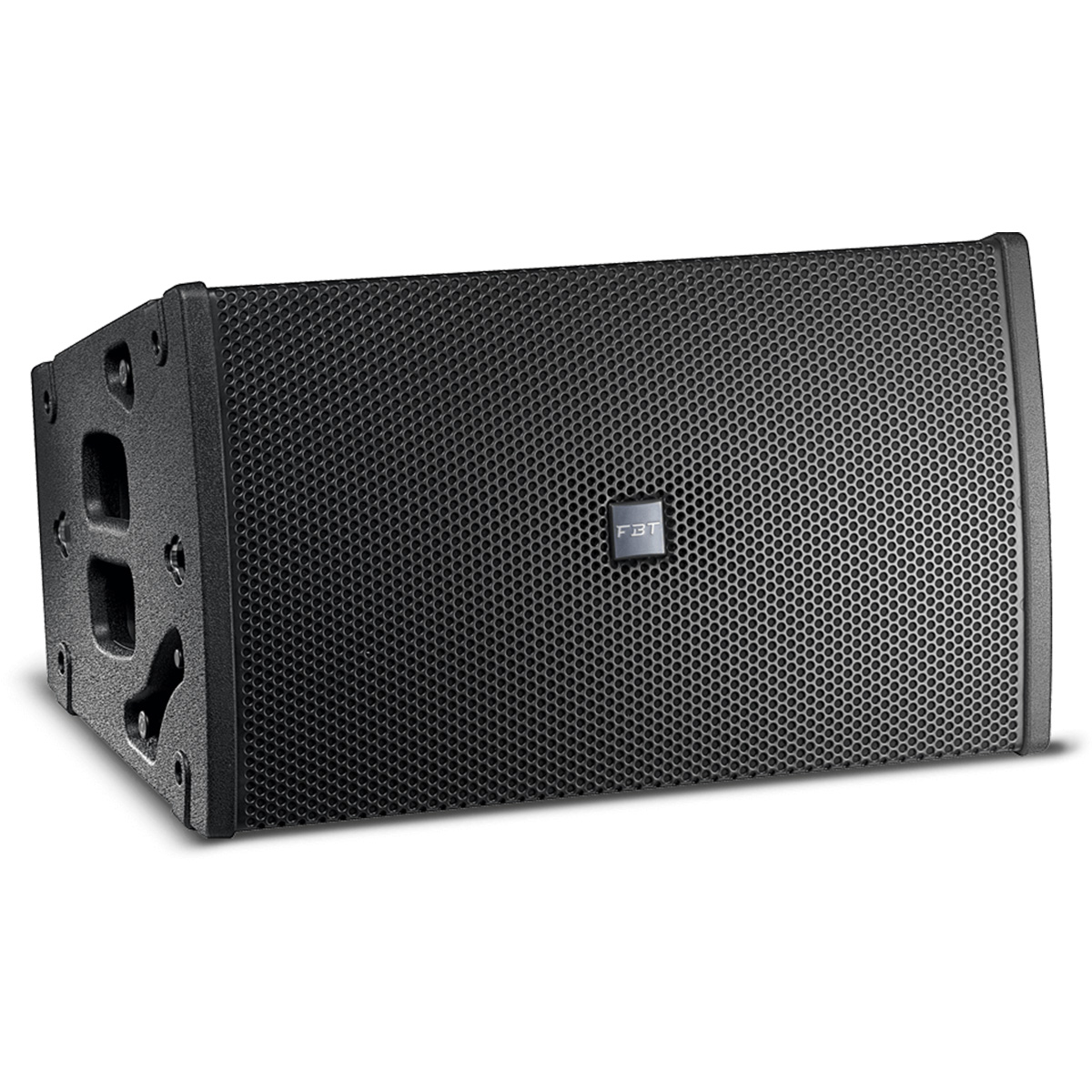

FBT HORIZON VHA 112SND is a compact, self-powered line array element and is a real plus of the HORIZON system; with the same cabinet and hardware of the HORIZON VHA 406ND, it can be used as subwoofer in so called "2-way+sub" configuration or as LF in "3-way" configuration with the HORIZON VHA 406ND specialised to MF and HF. The FBT HORIZON VHA 112SND features a 12" high excursion custom B&C woofer with a 3" neodymium voice coil. The summit of the entire project is the 1600W amplification module with TCP/IP network interface; based on the OCA ALLIANCE AES70 standard, it communicates with the INFINITO system management suite remote control software and receives 24-bit 48-96kHz digital audio streaming from all devices compatible with the DANTE standard. The module is housed in an aluminium chassis with intelligent forced ventilation and is equipped with an OLED display with encoder for parameter setting.
The cabinet is made of 0,47" birch plywood with two integrated handles and integrated mechanics to join the speakers and angle them from 5° to 20° in 5° steps that offers the possibility to cover the entire audience with few elements. The FBT HORIZON VHA 112SND also boats integrated quick-release anchor points that facilitate the creation of horizontal and vertical arrays using the dedicated flybar; the system provides a wide range of accessories for suspension, pole-mounting and ground-stacking. The front of the speaker is covered with a powder coated perforated steel grille and a high-brightness blue front LED allows remote identification of the device also in daylight.
