Any modern portable PA system needs to produce clear highs and thumping bass. The CORE system is no exception. The tuned active sub bass is a bass reflex, phase inverted design incorporating up to an impressive 700W + 400W amplifier module, capable of delivering power to the sub and to the curve array system.
The wooden cabinet is made to the highest standards with durable paint finish and large easy to grip handles.
With the 15” CORE151 only 485mm x 585mm the system will fit on virtually any stage or in any venue.
In addition to the power amplifier and switch mode power supply, the sub bass also houses the control panel, angled so is easy to connect, set-up and operate mid-event.
The curve array is connected via the specially designed top-hat sockets, which are used not only to space the curve array at the right height but also pass the audio signal through the pole to the curve array without the need for any cables.
Utilising a carefully designed angled cabinet housing the 3x 8” mid frequency drivers along with an angled array of 12x 1” dome tweeters provides a super wide 100° horizontal and 70° vertical pattern. Minimising energy wastage and providing an impressive audience coverage compared to a straight compact PA system.
All this is housed in a tough, compact cable free cabinet with a strong steel grille to protect the internal magic.

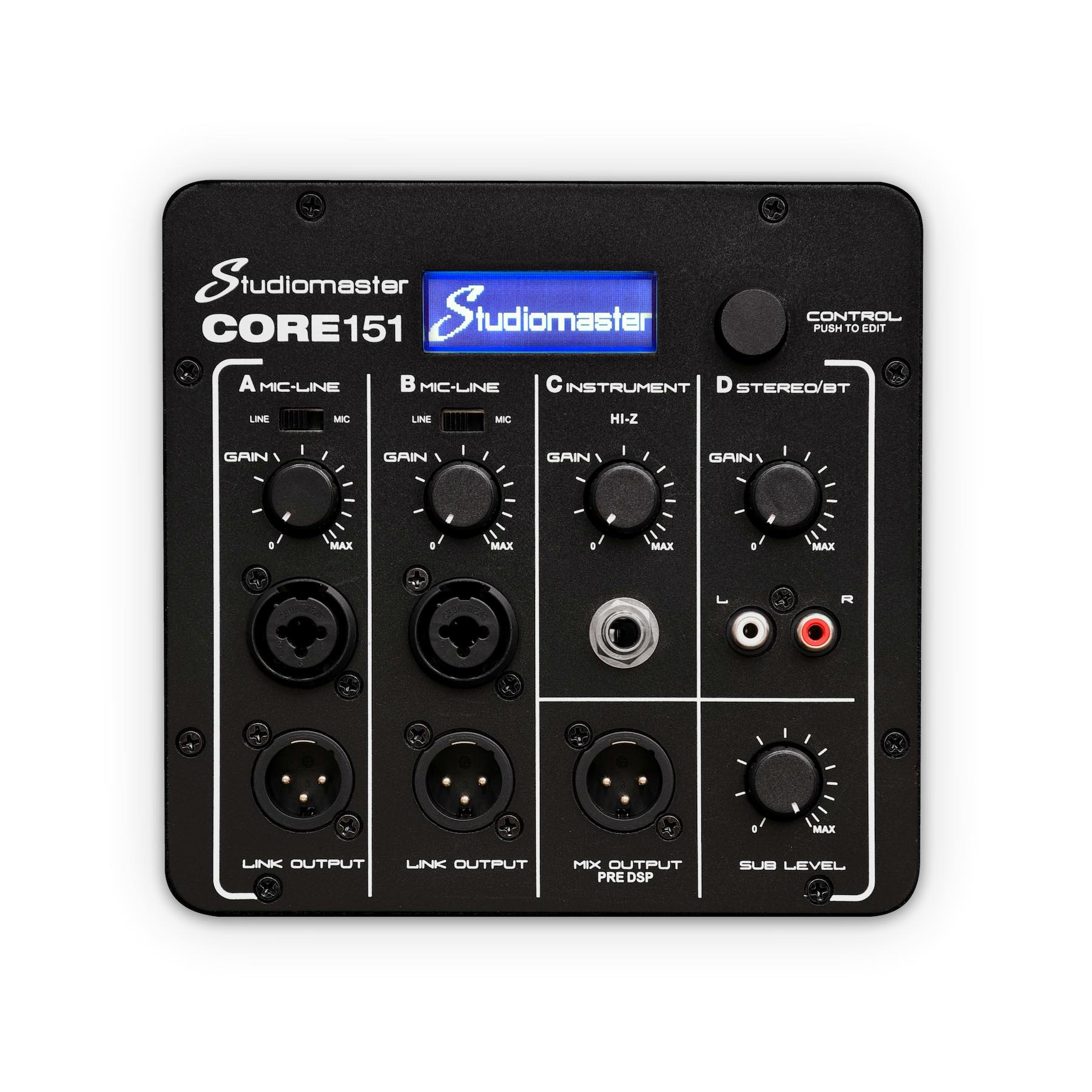

4 channel mixing with 2 mic/line, a hi-z instrument and a stereo line / Bluetooth® input to give you the ability to connect up your equipment without a separate desk. A dedicated sub level to achieve the perfect mix and a choice of link outputs depending on your requirements.
The processing available is all through a simple DSP interface with a backlit LCD screen and a single control. Choose a preset DJ, MUSIC or VOCAL and have access to three band EQ, output delay, master volume and useful metering of all channels.

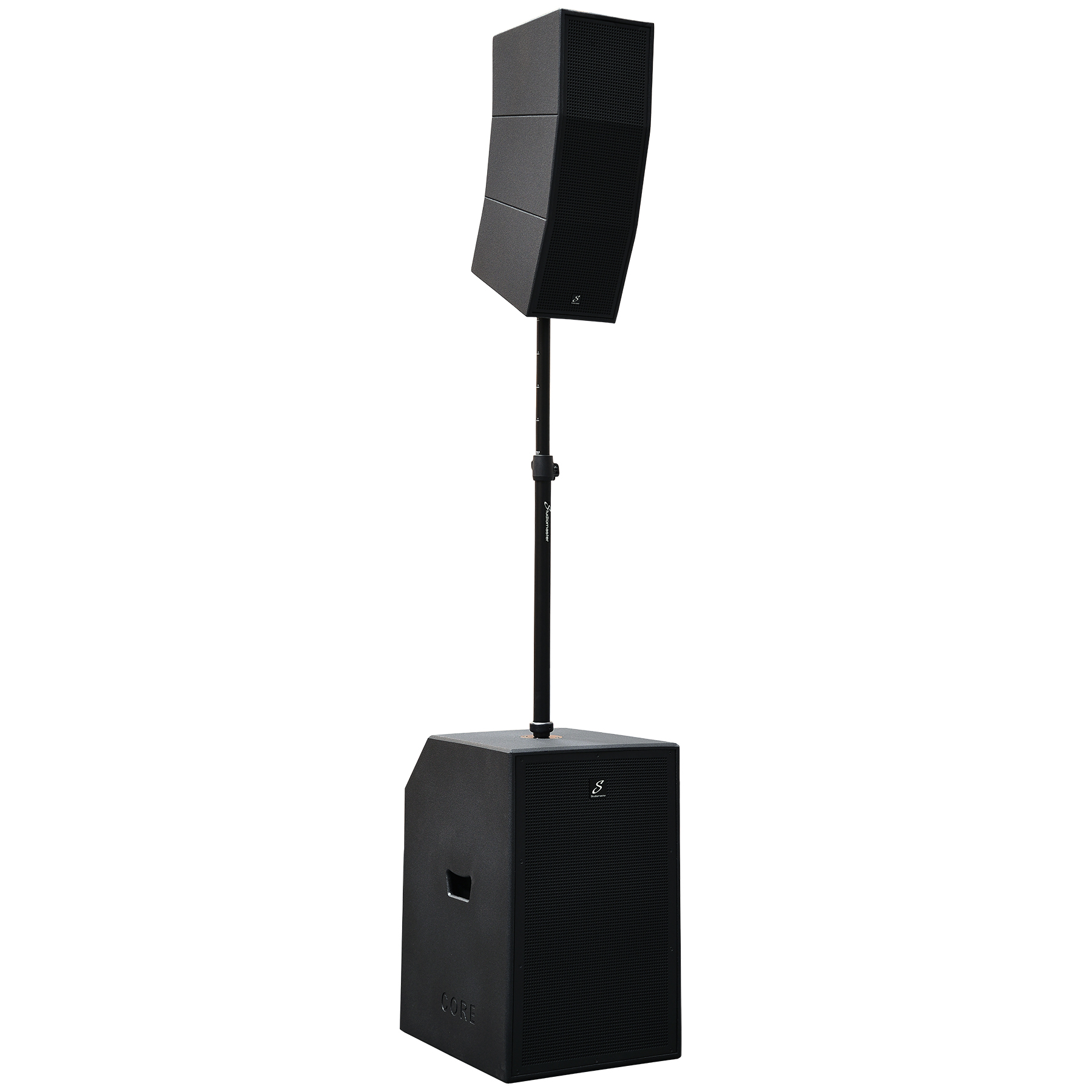

The Studiomaster Core system utilises a unique hidden cable design, connecting the sub cabinet and curve array cabinet via a pneumatic speaker pole with internal cable. Reducing setup time and maintaining the Core systems smart design.
