Studiomaster

QX2-1300

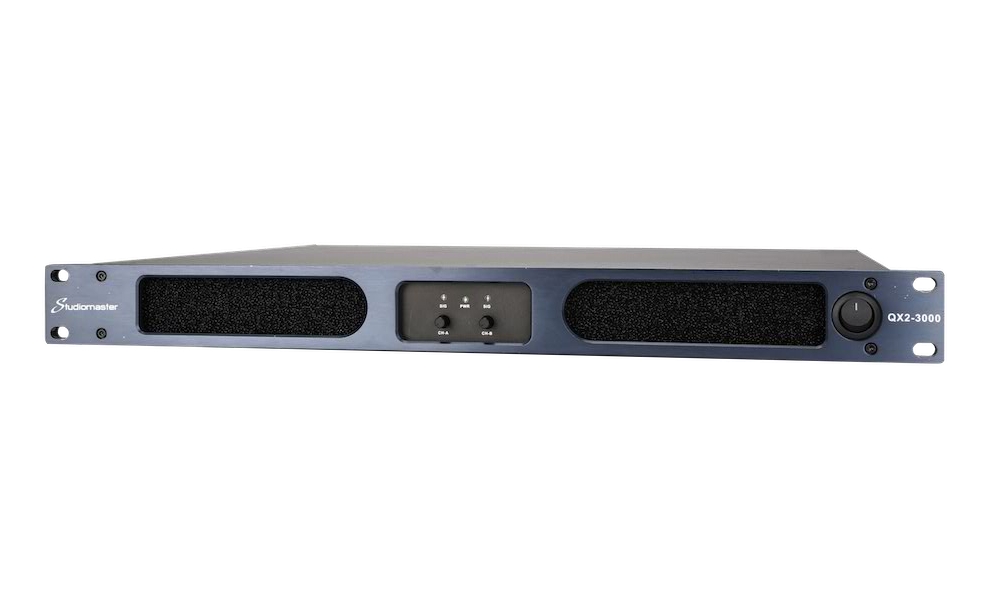

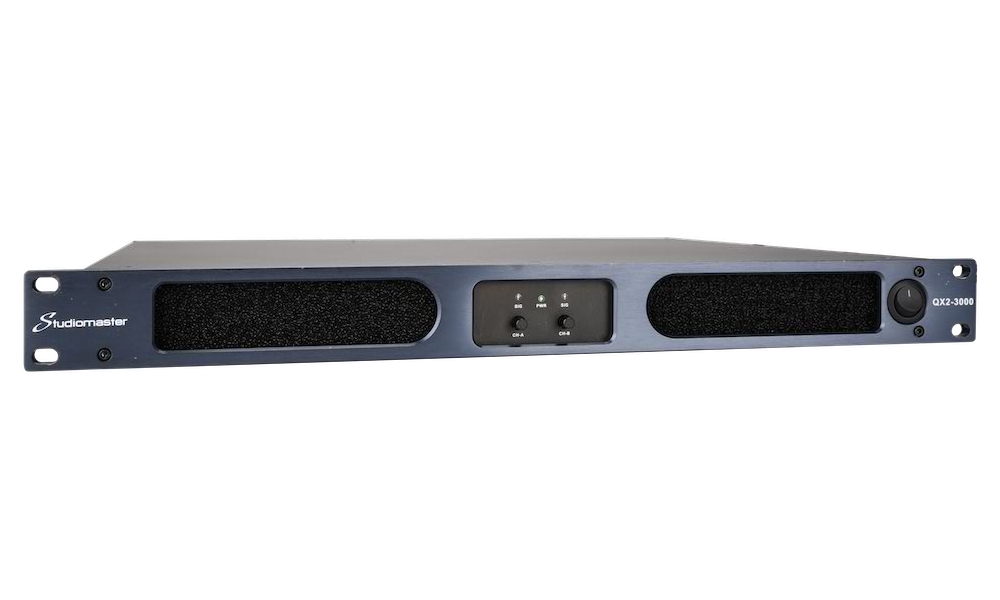

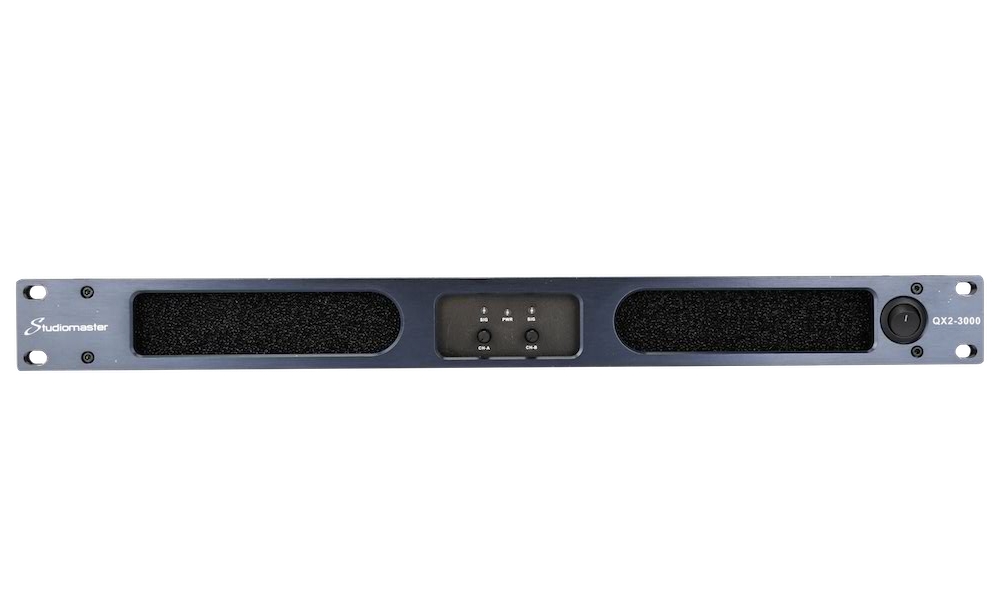

Studiomaster - 2 x 1100W 1U Power Amplifier

The QX series of digital power amplifiers feature advanced amplifier adjustment technology to give over 95% efficiency, and stable performance at high current, low impedance conditions.

The QX2-1300 delivers 2x 1100 watts into 4 ohm

RETAIL:
£599.00 inc VAT
 In Stock ( 3 Available )
SKU: 130108
EAN: 5060255344279
HS Code: 8518400090
Country of Origin: China

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

The QX series of digital power amplifiers feature advanced amplifier adjustment technology to give over 95% efficiency, and stable performance at high current, low impedance conditions.

Additional features include active power factor correction (PFC) and ultra reliable soft power switching power supply which will operate universally between 90-250VAC.

The QX series are all 1U height, lightweight designs, weighing less than 12kg. Both 2 and 4 channel versions are available, giving power ratings from 2550 watts per channel up to 5100 watts per channel at 4ohms.

At 2ohm operation, the flagship QX4-8000 will supply up to 4 x 4760 watts, making these amplifiers supply extremely high performance, and provide cost effective solutions for multiple install and rental applications, for example line array systems.

QX2-1300

8ohms Stereo: 2x650watts
4ohms Stereo: 2x1100watts
2ohms Stereo: 2x1870watts
16ohm Bridged: 1300watts
8ohm Bridged: 2200watts
4ohm Bridged: 3740watts

KEY FEATURES
  • Power factor correction (PFC)
  • Universal 90-250V power supply
  • 2 and 4 channel models
  • Reliable efficient operation down to 2ohm loads
  • Variable speed fan cooling
  • Internally modular design for quick maintenance
  • Stereo/parallel/bridge modes
  • Multiple gain modes
  • Output limiter
  • Balanced XLR inputs
  • 32A mains power input socket
  • Thermal, overload, DC protection
  • Thermal, fault and limiter indicators
SPECIFICATIONS
Net Weight:
10-12KG
Power Supply:
90-260VAC, 50/60Hz
Freq. Response:
(10% rated output power, 8ohm, 20Hz-20KHz): 0.2dB
Input Sensitivity:
1KHz: Option 41dB, 38dB, 35dB, 32dB
THD+N:
(10% rated output power: 0.01%
Input impedance(nominal):
20k ohm (bal), 10k ohm (unbal)
Cross Talk:
>80dB
Damping Factor:
(8ohm, 20Hz-200Hz): >105-112dB
Dimensions (WxHxD):
483mm x 44mm x 462mm
4 Ohm Output power:
2x 1100w
8 Ohm Output power:
2x 650w
8 Ohm Bridge output power:
2200w
Number of Channels:
2
Input Impedance:
20k ohm (bal), 10k ohm (unbal)
Protection:
Low Voltage, Overload, Thermal, DC Output Protection
Net Dimensions (WXHXD):
483 x 44 x 462mm
Net Weight:
12kg
Operating Voltage:
90-250VAC, 50/60Hz
AC Mains Connector:
32A
Distortion THD+N:
0.01%
S/N (20 HZ - 20KHZ @ 8 OHM):
> 105-112dB
Damping Factor:
(8ohm, 20Hz : 200Hz): 5000
Input Sensitivity:
41dB, 38dB, 35dB, 32dB Selectable
