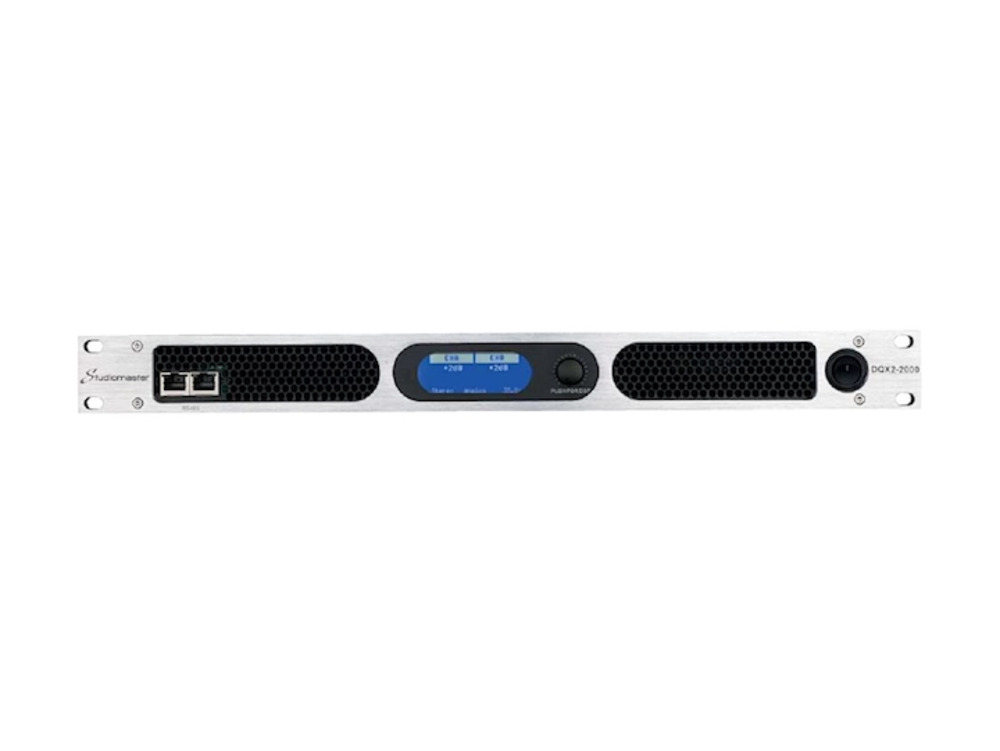

The new DQX series, using the same amplifier and power supply platform as the QX series, feature a high quality DSP, with high precision and dynamic AD/DA converters and an informative 3.3 HD LCD screen. Real time monitoring is
available both via the screen or via Network Ethernet connections.
Additional features include active power factor correction (PFC) and ultra reliable soft power switching power supply which will operate universally between 90-250VAC.
The DQX series, are all 1U height lightweight designs, weighing less than 13kg. Both 2 and 4 channel versions are available, giving power ratings from 2550 watts per channel up to 5100 watts per channel at 4 ohms at over 95% efficiency.
At 2 ohm operation, the flagship DQX4-8000 will supply up to 4 x 5780 watts, making these amplifiers supply extremely high performance, and provide cost effective solutions for multiple install and rental applications, for example line array systems
*Update - Connection and communication is now using Network Ethernet cable.
8ohms Stereo: 4x1500watts
4ohms Stereo: 4x2550watts
2ohms Stereo: 4x3570watts
16ohm Bridged: 2x3000watts
8ohm Bridged: 2x5100watts
4ohm Bridged: 2x7140watts
