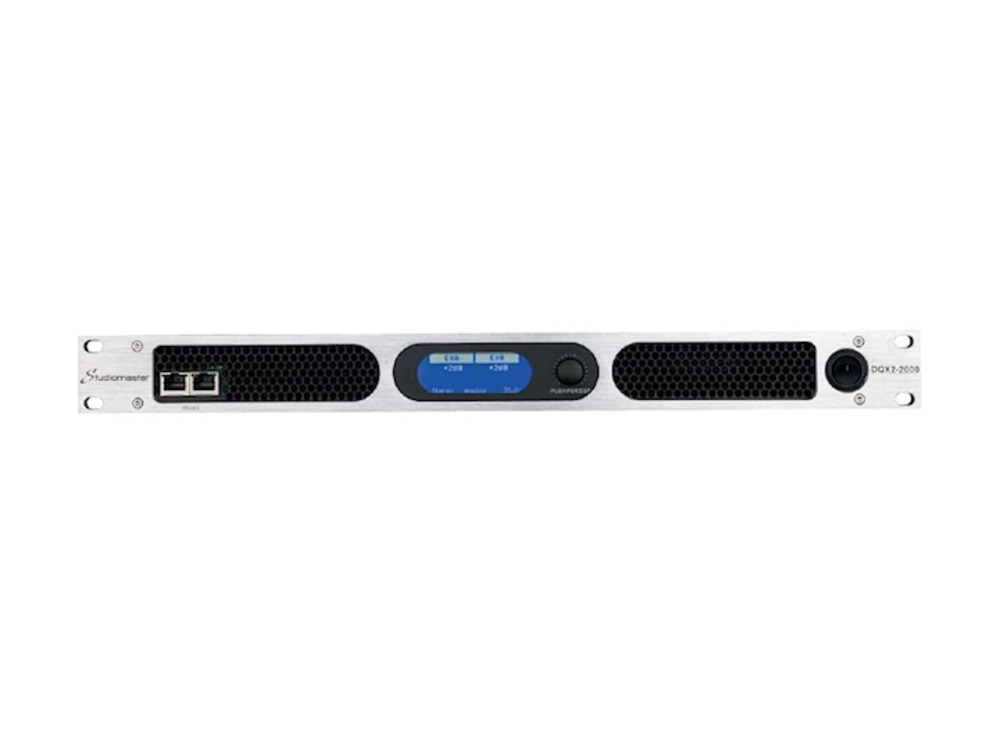

The new DQX series, using the same amplifier and power supply platform as the QX series, feature a high quality DSP, with high precision and dynamic AD/DA converters and an informative 3.3 HD LCD screen. Real time monitoring is
available both via the screen or via Network Ethernet connections.
Additional features include active power factor correction (PFC) and ultra reliable soft power switching power supply which will operate universally between 90-250VAC.
The DQX series, are all 1U height lightweight designs, weighing less than 13kg. Both 2 and 4 channel versions are available, giving power ratings from 2550 watts per channel up to 5100 watts per channel at 4 ohms at over 95% efficiency.
These amplifiers supply extremely high performance, and provide cost effective solutions for multiple install and rental applications, for example line array systems
*Update - Connection and communication is now using Network Ethernet cable.
8ohms Stereo: 2x650watts
4ohms Stereo: 2x1100watts
2ohms Stereo: 2x1870watts
16ohm Bridged: 1300watts
8ohm Bridged: 2200watts
4ohm Bridged: 3740watts
