NAC3FXXA-W-L

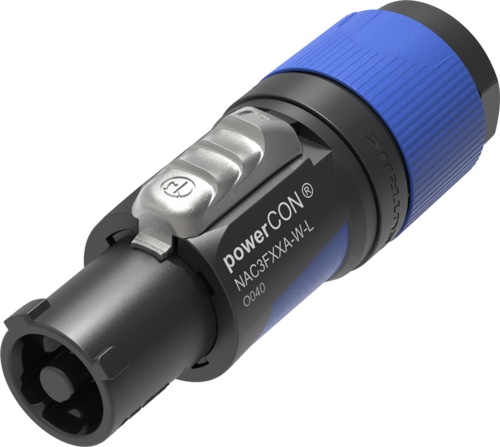

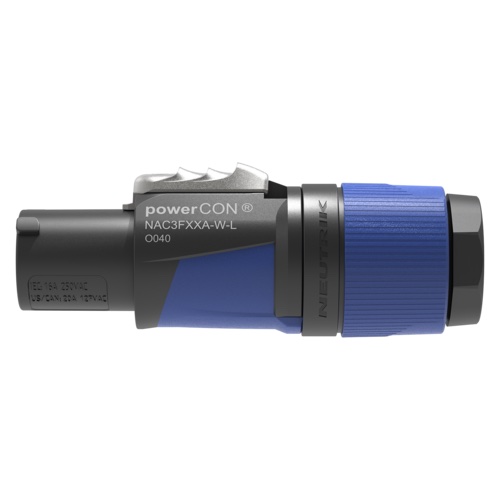

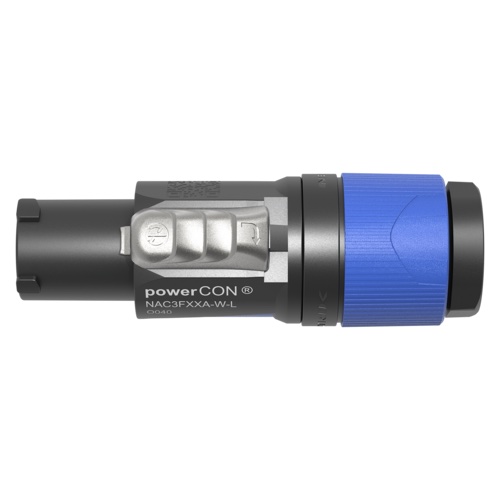

Neutrik powerCON locking cable connector

Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 10 - 16 mm.

RETAIL:

£8.69 inc VAT

In Stock ( 155 Available )

QTY

SKU: 122017

EAN: 7613187017780

Commodity Code: 85366990

Country of Origin: Swaziland

OVERVIEW

FEATURES

DOWNLOADS

PRODUCT DESCRIPTION

The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.

It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

KEY FEATURES

IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
Ergonomic design with slip-proof two-component molded housing
Power-in (blue) and power-out (grey) versions with dierent keying to avoid the possibility of intermating
Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
Superior NEUTRIK quality standard, extremely robust and reliable
Easy and reliable twist lock system
Improved kink protection by two-component bushing

DOWNLOADS

Data Sheet

NAC3FXXA-W-L
