The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
NC4FXX
4 pole female XLR receptacle

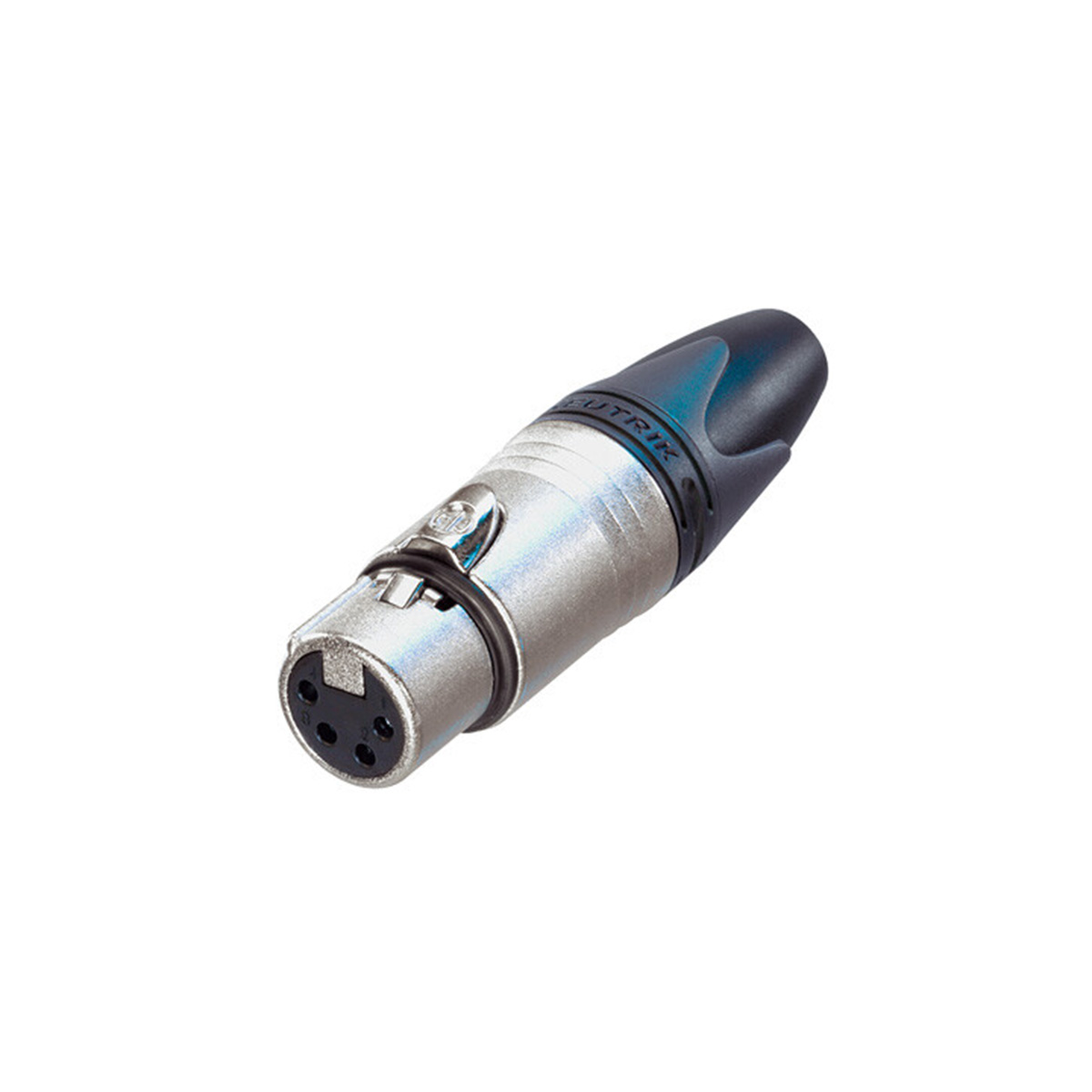

4 pole female cable connector with Nickel housing and silver contacts
SKU: 120791
EAN: 7613187000157
Commodity Code: 85366953
Country of Origin: Liechtenstein
PRODUCT DESCRIPTION
KEY FEATURES
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
SPECIFICATIONS
Capacitance Between Contacts:
= 7 pF
Contact Resistance:
= 3 mO
Dielectric Strength:
1,5 kVdc
Insulation Resistance:
> 10 GO (initial)
Rated Current Per Contact:
10 A
Rated Voltage:
< 50 V
Cable O.D.:
3.5 - 8.0 mm
Insertion Force:
= 20 N
Withdrawal Force:
= 20 N
Lifetime:
> 1000 mating cycles
Wiresize:
max. 1.5 mm² (16 AWG)
Locking Device:
Latch lock
Boot:
Polyurethan
Contact Plating:
2 µm Ag over 2 µm Ni
Contacts:
Brass (CuZn39Pb3)
Insert:
Polyamide (PA66)
Locking Element Shell:
Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell:
Zinc diecast (ZnAl4Cu1)
Shell Plating Strain Relief:
Polyacetal (POM)
Flammability:
UL 94 V-0
Standard Compliance:
IEC 61076-2-103
Protection Class:
IP 40
Solderability:
Complies with IEC 68-2-20
Temperature Range:
-30 °C to +80 °C
