Title | NC3FX-TOP |
Connection Type | XLR |
Gender | female |
Electrical | |
Capacitance between contacts | 4 pF |
Contact resistance | 3 m |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 10 G (initial) |
Rated current per contact | 8.3 A |
Rated voltage | < 50 V |
Mechanical | |
Cable O.D. | 5.0 - 8.0 mm |
Insertion force | 20 N |
Withdrawal force | 20 N |
Lifetime | > 5000 mating cycles |
Wiresize | max. 1.5 mm² |
Wiresize | max. 16 AWG |
Wiring | Solder contacts |
Locking device | Latch lock |
Material | |
Bushing | UV-resistant rubber |
Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
Contacts | Bronze (CuSn8) |
Insert | Polyamide (PA 6.6 30 % GR) |
Locking element | St3K32 (latch) / Ck 67 (spring) |
Shell | Zinc diecast (ZnAI4Cu1) |
Shell plating | Nickel |
Strain relief | Polyacetal (POM) |
Sealing jacket | UV-resistant rubber |
Environmental | |
Approvals | UL |
Flammability | UL 94 HB |
Standard compliance | IEC 61076-2-103 |
Protection class | IP65, UL50E (mated) |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
NC3FX-TOP
3 pole cable connector, female TOP Total Outdoor Protection

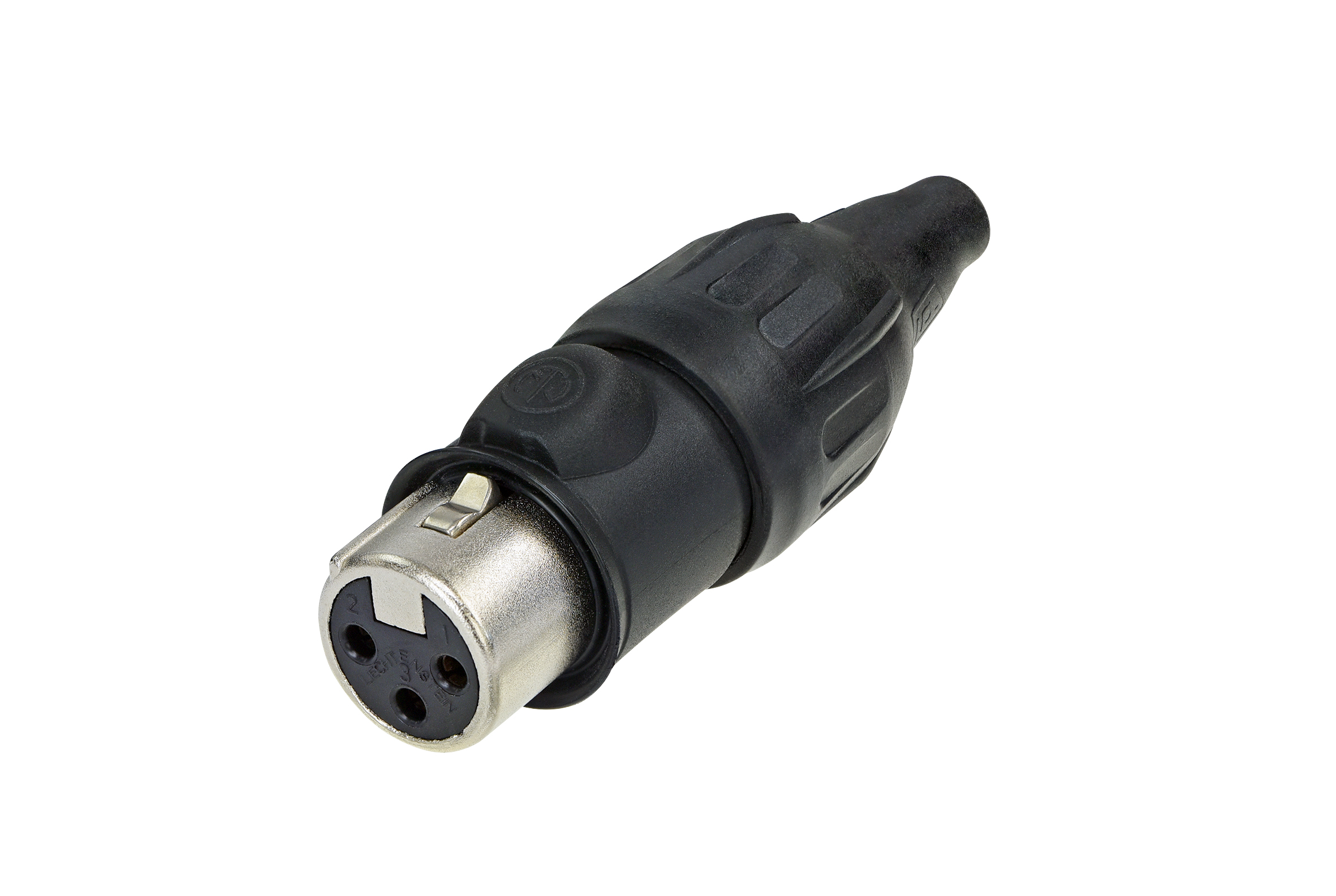

3 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts
The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rating and certified outdoor protection to UL 50E by mating with related cable or chassis connector of the XLR TOP range.
SKU: 120625
