Title | NC3MX-TOP |
Connection Type | XLR |
Gender | male |
Electrical | |
Capacitance between contacts | 4 pF |
Contact resistance | 3 m |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 10 G (initial) |
Rated current per contact | 16 A |
Rated voltage | < 50 V |
Mechanical | |
Cable O.D. | 5.0 - 8.0 mm |
Insertion force | 20 N |
Withdrawal force | 20 N |
Lifetime | > 5000 mating cycles |
Wiresize | max. 1.5 mm2 |
Wiresize | max. 16 AWG |
Wiring | Solder contacts |
Locking device | Latch lock |
Material | |
Bushing | UV-resistant rubber |
Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA 6.6 30 % GR) |
Locking element | Stainless steel |
Shell | Stainless steel |
Strain relief | Polyacetal (POM) |
Environmental | |
Approvals | UL |
Flammability | UL 94 HB |
Standard compliance | IEC 61076-2-103 |
Protection class | IP65, UL50E (mated) |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
NC3MX-TOP

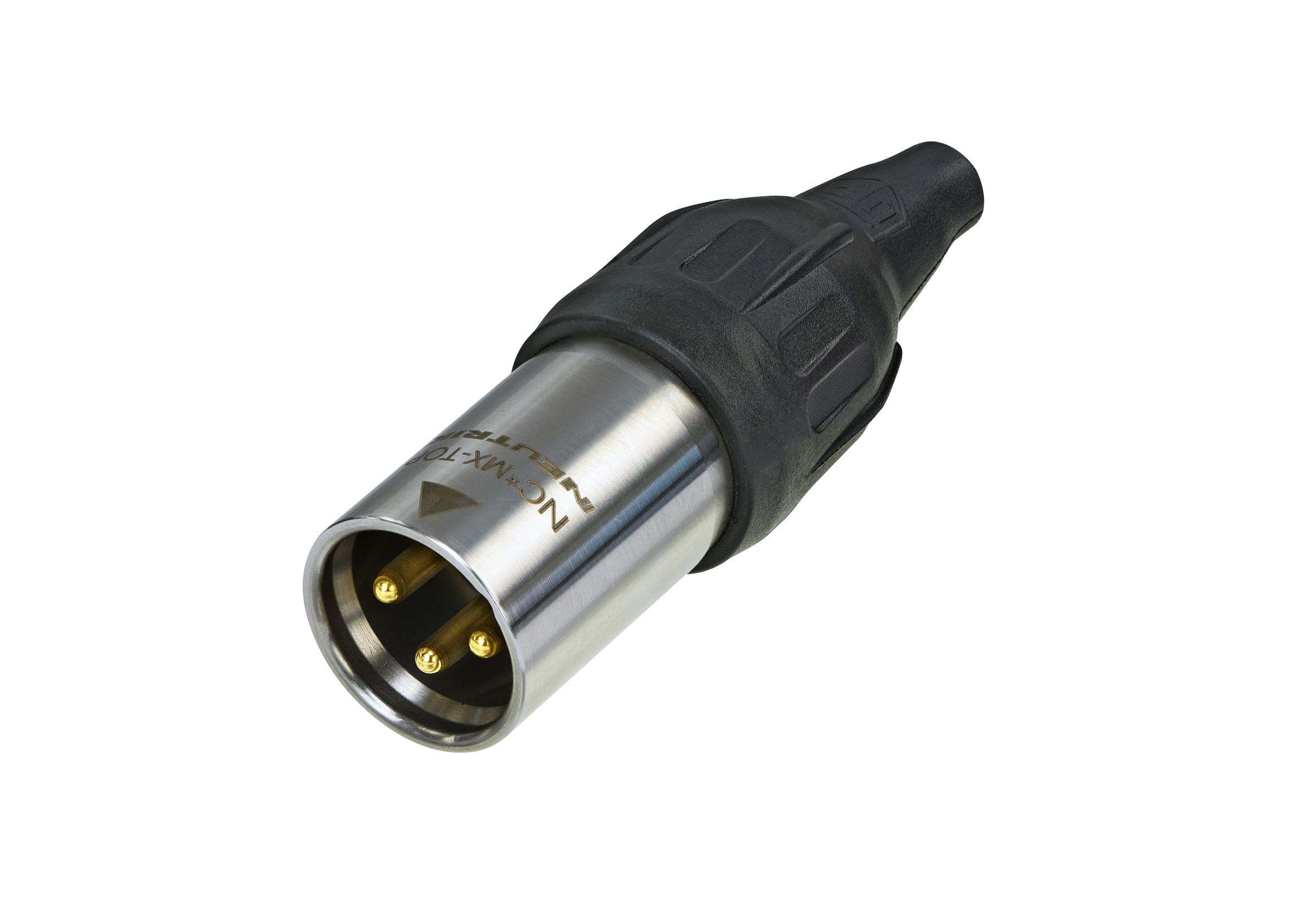

3 pole cable connector, Male TOP
3 pole male cable connector, TRUE OUTDOOR PROTECTION, gold contacts
The X-TOP series is a "heavy duty" XLR cable connector for outdoor use. IP65 rating and certified outdoor protection to UL 50E by mating with related cable or chassis connector of the XLR TOP range.
SKU: 120730
