The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

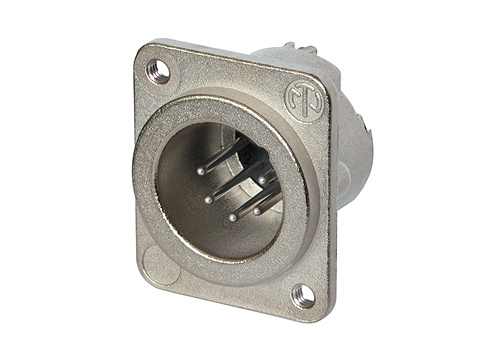

NC5MD-LX-M3
5 pole male XLR receptacle
5 pole male receptacle, solder cups, Nickel housing, silver contacts, M3 mounting holes
SKU: 120888
Commodity Code: 85366953
Country of Origin: Liechtenstein
PRODUCT DESCRIPTION
KEY FEATURES
- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Male connector's retention bar replaces plastic design with all metal version improving pull-out force
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
