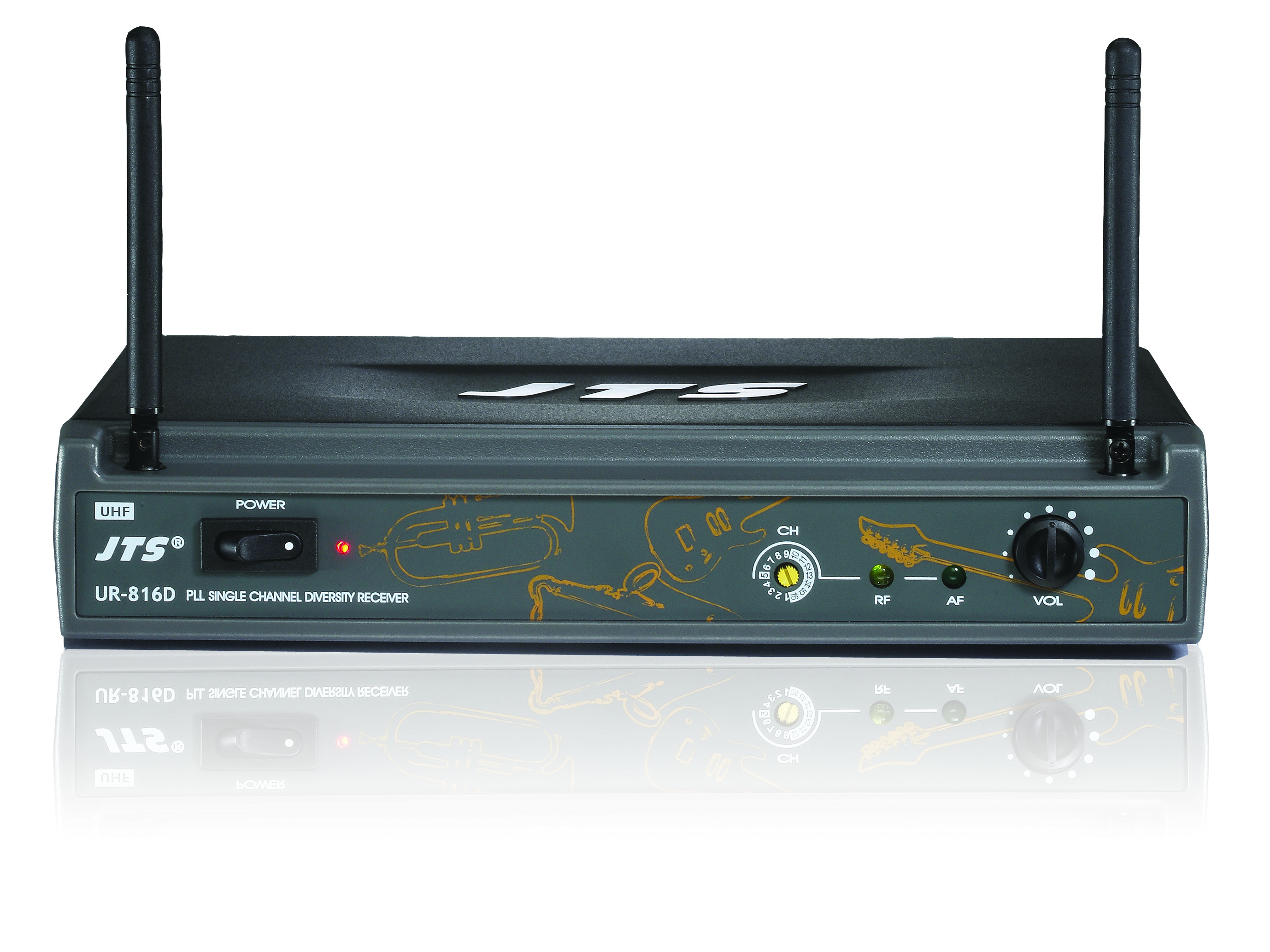

UHF PLL Single Channel Diversity Receiver
UR-816D
The UR-816D is a 863-865MHz Channel 70. UHF PLL Single Channel Diversity Receiver designed to work with the UT-16GT and UT-16GTP
SKU: 81283
EAN: 4712832614848
Commodity Code: 8518100090
Country of Origin: Taiwan
PRODUCT DESCRIPTION
SPECIFICATIONS
Net Dimension (WxHxD):
210 x 40 x 171mm
Frequency Preparation:
PLL Synthesized Control
S/N Ratio:
> 105dB
Display:
LED
Display Contents:
Antenna A/B, RF/AF Status
Controls:
Power On/Off, Channel Selection, Audio Level
Audio Output Level:
-12dB
Squelch:
Pilot Tone & Noise Mute
Operation Voltage:
12-18V DC, 200mA
Output Connector:
1x XLR Balanced Socket, 1x 6.3mm Unbalanced Jack Socket
Carrier Frequency Range:
863-865Mhz
AF Output Impedance:
600Ω
