JTS

RU-901G3 RU-G3TH

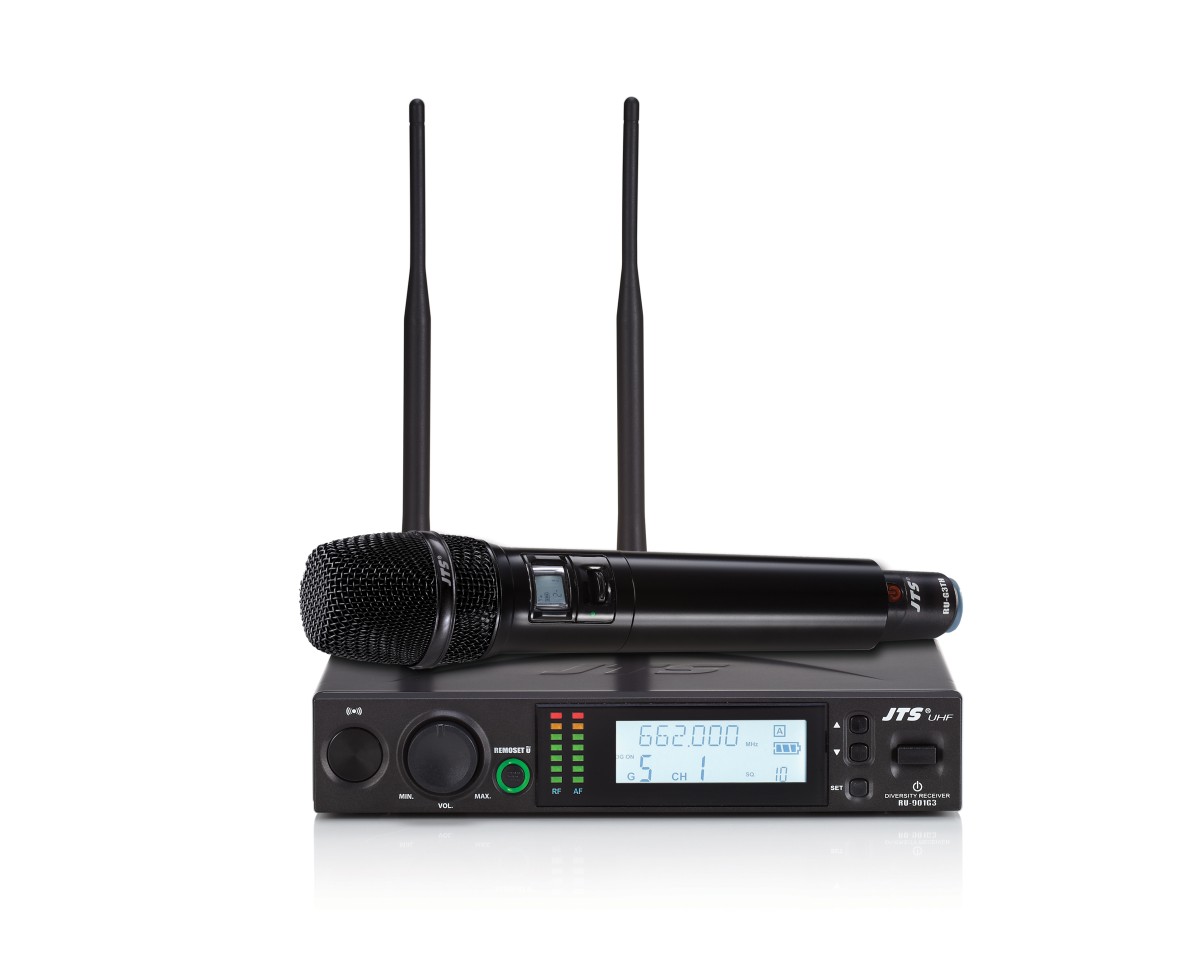

Single Channel True Diversity UHF Handheld Wireless System

The RU-901G3/RU-G3TH system offers 'True Diversity' technology at an exceptional price point and assures faultless performance. The Ultrasonic REMOSET makes for a simple setup procedure and allows frequency, gain and ID to be transmitted between receiver and transmitter at the touch of a button. Bundled with our RU-G3TH condenser handheld transmitter assures faultless audio.

RETAIL:
£470.09 inc VAT
 In Stock ( 45 Available )
SKU: 81120
EAN: 4712933610923
Commodity Code: 8518100090
Country of Origin: Taiwan

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

UHF True Diversity Handheld Wireless Microphone System with Remoset U



RU-901G3/RU-G3TH is a Single True Diversity reciever and Hand-Held  Microphone system.

The system is made up from the Single Channel RU-901G3 True Diversity  UHF PLL Wide-band receive and the Hand-Held transmitter, the RU-G3TH.
KEY FEATURES
RU-901G3 Receiver Features:

*JTS “True diversity” which is when the two independent antennas (antenna diversity) are connected additionally to two independent receiver modules. So not only do they switch to which of the two antennas is getting the best signal, but also which receiver module is getting the best signal. This is JTS’ ultimate method of preventing drop-outs.

*REMOSET ULTRASONIC technology for receiver/transmitter synchronisation

*Auto-Scan function

*Pilot tone squelch and noise mute

*Backlit LCD display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level

*1 x XLR output (balanced.) and 1 x 6.3 mm TS Jack output (unbalanced.)

*Removable BNC Antennas

*Half size Reciever with Optional rack mount kit available.

*Optional rechargable Station with rechargable batteries is available (G3CH-2)


Available in CH 38 (606.5-642MHz)



RU-G3TH Handheld Transmitter:
*Phase-locked Loop (PLL) synthesized tuner.

*Powered by 2 x AA batteries.

*Back lit LCD display with channel and battery life indicator, ID number.

*Extended dynamic range and smooth frequency response.

*Noise mute and tone-key squelch.

*Seperate Mute switch and Power button.

*Optional Charger available (G3CH-2)

Available in CH 38(606.5-642MHz)



SPECIFICATIONS
Frequency Preparation:
PLL Synthesized Control
S/N Ratio:
36MHz
Squelch:
Pilot Tone & Noise Mute
Output Connector:
1x Balanced XLR Socket, 1x Unbalanced 6.3mm Jack
Frequency Setting:
Remoset U Ultrasonic
Receiving Mode:
True Diversity
Power Supply:
DC12~15V/500mA
Frequency Range:
606.5-642MHz
T.H.D:
> 105dB
Antenna:
BNC (F)
