JTS

RU-901G3 RU-G3TB+CM-501

Single Channel True Diversity UHF Bodypack Wireless System

The RU-901G3/RU-G3TB+CM-501 system offers 'True Diversity' technology at an exceptional price point and assures faultless performamce. The Ultrasonic REMOSET makes for a simple setup proceedure and allows frequency, gain and ID to be transmitted between receiver and transmitter at the touch of a button. Bundled with our RU-G3TB body pack transmitter and CM-501 Lavalier mic assures faultless audio.
RETAIL:
£470.09 inc VAT
 In Stock ( 42 Available )
SKU: 81121
EAN: 4712933610930
Commodity Code: 8518100090
Country of Origin: Taiwan

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

UHF True Diversity Lapel Wireless Microphone System with Remoset U

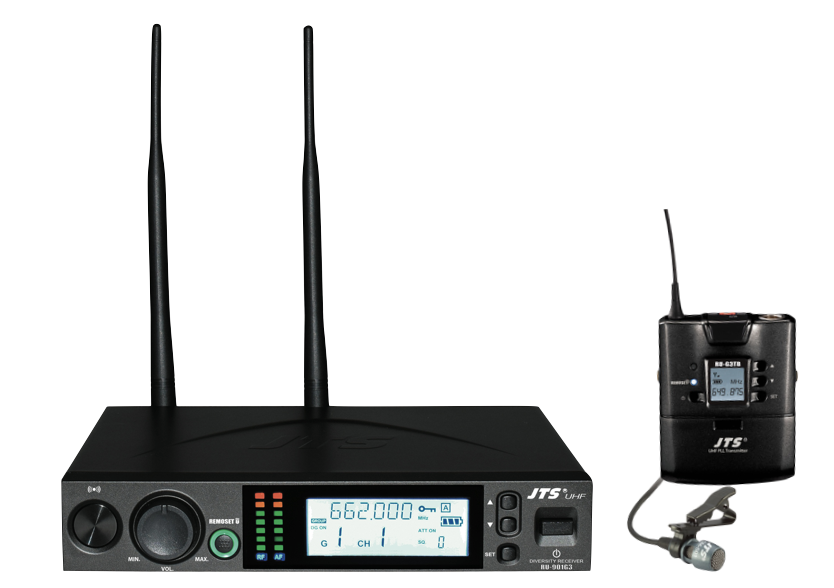

RU-901G3/RU-G3TB is a Single True Diversity reciever and Belt Pack Microphone system.

The system is made up from the Single Channel RU-901G3 True Diversity UHF PLL Wide-band receiver, the RU-G3TB Metal bodied Belt-Pack and the legendary CM-501 Tie clip Microphone.
KEY FEATURES
RU-901G3 Receiver Features:

*JTS “True diversity” which is when the two independent antennas (antenna diversity) are connected additionally to two independent receiver modules. So not only do they switch to which of the two antennas is getting the best signal, but also which receiver module is getting the best signal. This is JTS’ ultimate method of preventing drop-outs.

*REMOSET ULTRASONIC technology for receiver/transmitter synchronisation

*Auto-Scan function

*Pilot tone squelch and noise mute

*Backlit LCD display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level

*1 x XLR output (balanced.) and 1 x 6.3 mm TS Jack output (unbalanced.)

*Removable BNC Antennas

*Half size Reciever with Optional rack mount kit available.

*Optional rechargable Station with rechargable batteries is available (G3CH-2)


Available in CH 38 (606.5-642MHz)





RU-G3TB Beltpack Features:

*Phase-locked Loop (PLL) synthesized tuner.

*Powered by 2 x AA batteries with 12 hrs. average battery life.

*Equipped with 4 Pin Mini XLR connector.

*Twin Back lit LCD display with channel and battery life indicator, ID number.

*The “lock-on” function prevents tampering and RF interruption.

*Extended dynamic range and smooth frequency response.

*Noise mute and tone-key squelch.

Available in CH 38 (606.5-642MHz)
Compatible with optional Guitar cable and optional Wireless instrument microphones and optional FGM-62 /170 Carbon series Microphones. Also compatible with the optional  JTS wireless goose-neck Microphones ask your dealer for more information on these fantastic optional extras.




CM-501 Tie Clip Microphone Features:

*Uni-directional for high-quality voice pick-up.

*Wide dynamic range and frequency response for excellent sound reinforcement.

*Small size for minimum visibility.

*Supplied with clip for easy attaching to a tie, lapel, dress etc.





SPECIFICATIONS
Frequency Preparation:
PLL Synthesized Control
S/N Ratio:
36MHz
Squelch:
Pilot Tone & Noise Mute
Output Connector:
1x Balanced XLR Socket, 1x Unbalanced 6.3mm Jack
Frequency Setting:
Remoset U Ultrasonic
Receiving Mode:
True Diversity
Power Supply:
DC12~15V/500mA
Frequency Range:
606.5-642MHz
T.H.D:
> 105dB
Antenna:
BNC (F)
