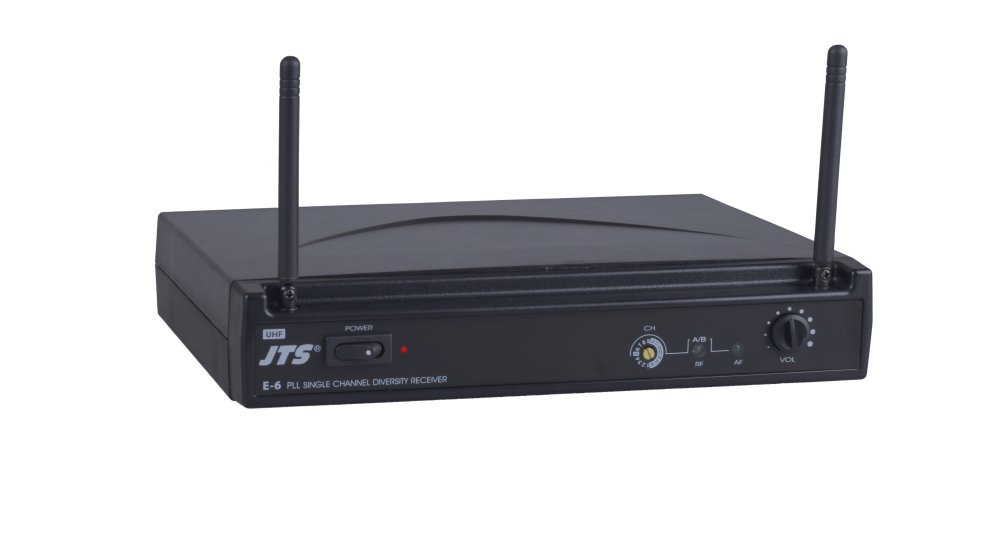

UHF single channel PLL diversity receiver
E-6
The E-6 is our most affordable wireless system. The receiver features 16 selectable channels, antenna diversity, 60 metre or more operation distance and many other features. As always JTS RF and AF performance is assured. Very affordable price makes going wireless easier.
SKU: 81002
EAN: 4712933610770
Commodity Code: 8518100090
Country of Origin: Taiwan
PRODUCT DESCRIPTION
KEY FEATURES
The E-6 is our most afordable wireless system
The reciever features16 selectable channels, antenna diversity, 60 metre or more operation distance and many other features. As always JTS RF and AF performance is assured. Very affordable price makes going wireless easier.
* Preset 16 selectable UHF channels on Licence free Channel 70 (863-865MHz)
* Single transmitter operation.
* Antenna Diversity technology prevents dropouts in the RF link.
* PLL synthesized technology.
* Noise mute and pilot tone squelch.
* Equipped with both XLR balanced and 6.3mm unbalanced TS Jack outputs.
* Tuned antennas maximize the effective range of the wireless range.
* Compact half rack space design.
*Remember due to channel 70 frequency range a limit of a maximum of 3 systems can be used simultaneously
*Remember due to channel 70 frequency range a limit of a maximum of 3 systems can be used simultaneously
SPECIFICATIONS
Net Dimension (WxHxD):
210 x 40 x 171mm
Frequency Preparation:
PLL Synthesized Control
Carrier Frequency:
863 - 865MHz
S/N Ratio:
>105dB(A)
Display:
LED indicator
Display Contents:
Antenna A/B, RF/AF Status Controls : Power On/Off, Channel Selecting, Audio Level
Controls:
Power On/Off, Channel Selecting, Audio Level
Audio Output Level:
-12dB
Audio Output Impedance:
600Ω
Squelch:
Pilot Tone & Noise Mute
Operation Voltage:
12-18 VDC, 150mA
Output Connector:
1 Balanced XLR socket / 1 Unbalanced ?ò6.3mm phone jack
