Stock Email
JTS

JS-1

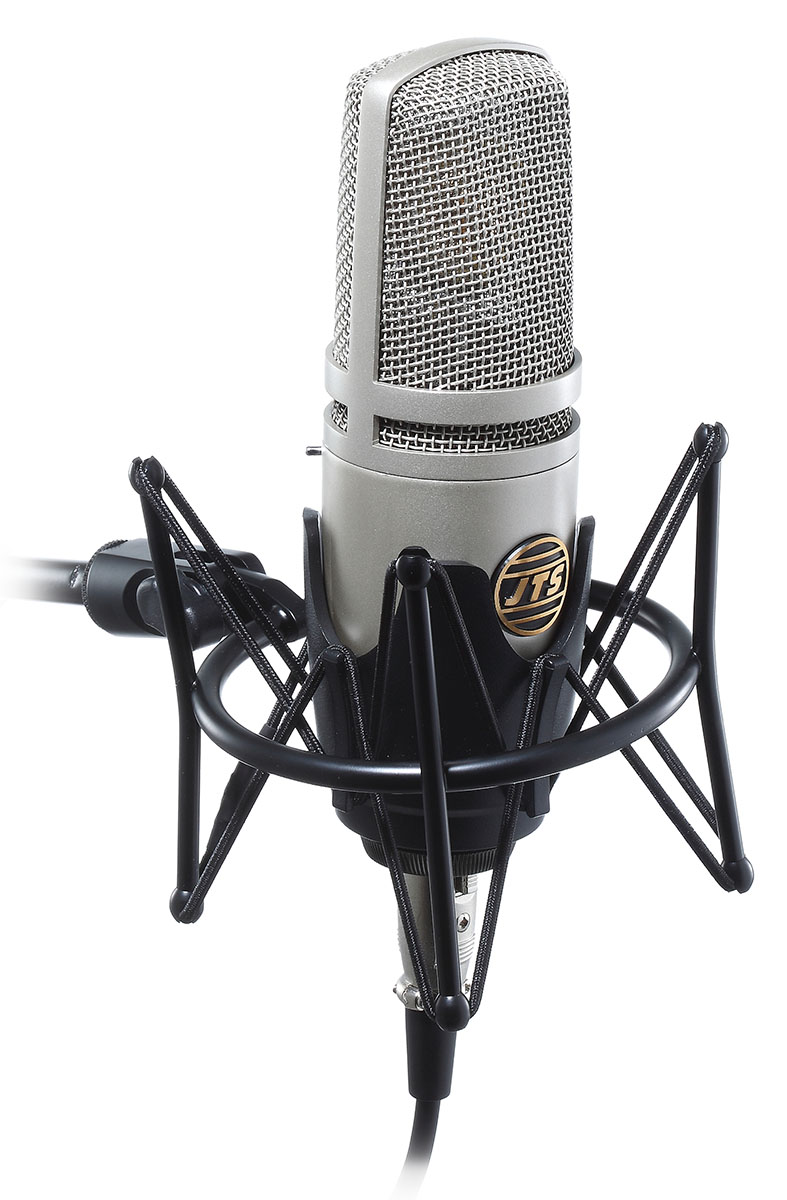

The JTS JS-1 is a studio microphone designed for use in the most demanding applications. A specially contoured 1” super thin 24K gold plated diaphragm provides superb reproduction of high sound pressure level signals at all frequencies. A switchable 10dB pad is built-in to increase the SPL capabilities. It’s precise resolution and ability to handle high sound-pressure levels makes it an excellent all-purpose microphone. Included with the JS-1 a versatile shock-mount with standard 5/8”-27 threads.
RETAIL:
£294.92 inc VAT
 Out Of Stock
Call for availability
SKU: 81442
EAN: 4712832616330
HS Code: 8518100090
Country of Origin: China

OVERVIEW
SPECIFICATIONS
PRODUCT DESCRIPTION

Large Diaphragm Studio Microphone



The JTS JS-1 is a studio microphone designed for use in the most demanding applications. A specially contoured 1” super thin 24K gold plated diaphragm provides superb reproduction of high sound pressure level signals at all frequencies. A switchable 10dB pad is built-in to increase the SPL capabilities. It’s precise resolution and ability to handle high sound-pressure levels makes it an excellent all-purpose microphone. Included with the JS-1 a versatile shock-mount with standard 5/8”-27 threads.

SPECIFICATIONS
Frequency response:
20Hz - 20kHz
Net Dimension (WxHxD):
56mm x 184mm
Net Weight:
480 grams
Sensitivity:
-38 dB* (12.6mV) 0dB
S/N Ratio:
78dB
Output Connector:
3 Pin Male XLR
Power Supply:
36-52VDC phantom power
Microphone Type:
Large Diaphragm Condenser Microphone
Current Consumption:
≤1mA
Directional Pattern:
Cardioid
Attenuation Switch:
-10dB
Low Frequency Roll-Off:
80Hz
Impedance:
200Ω
Max. SPL for 1% T.H.D:
132dB
