JTS

CX-509

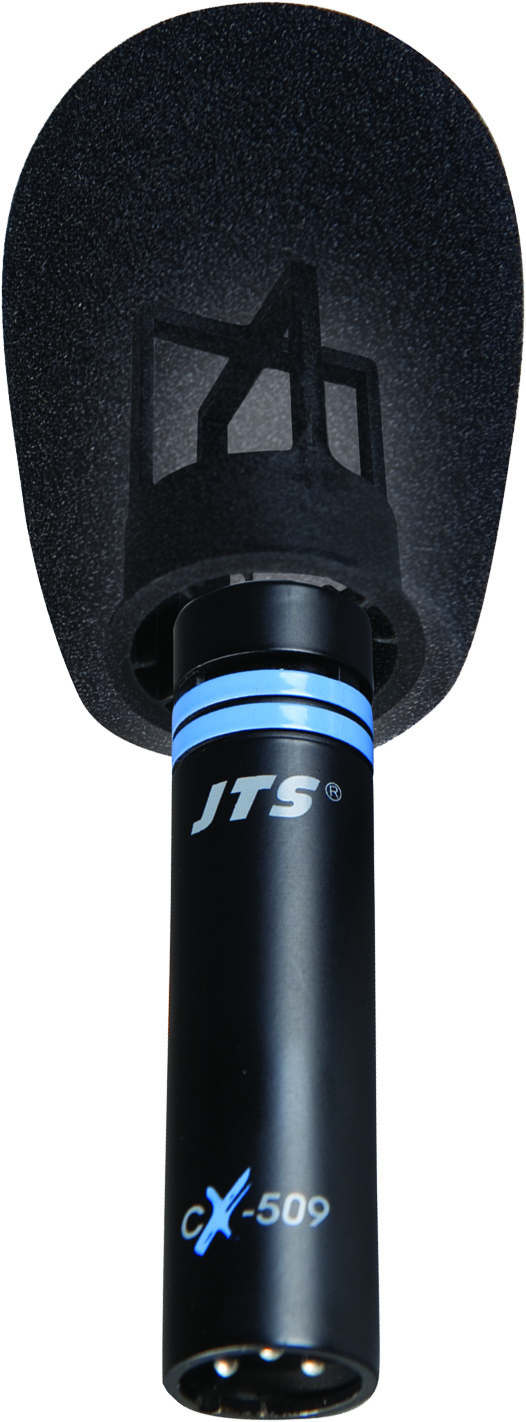

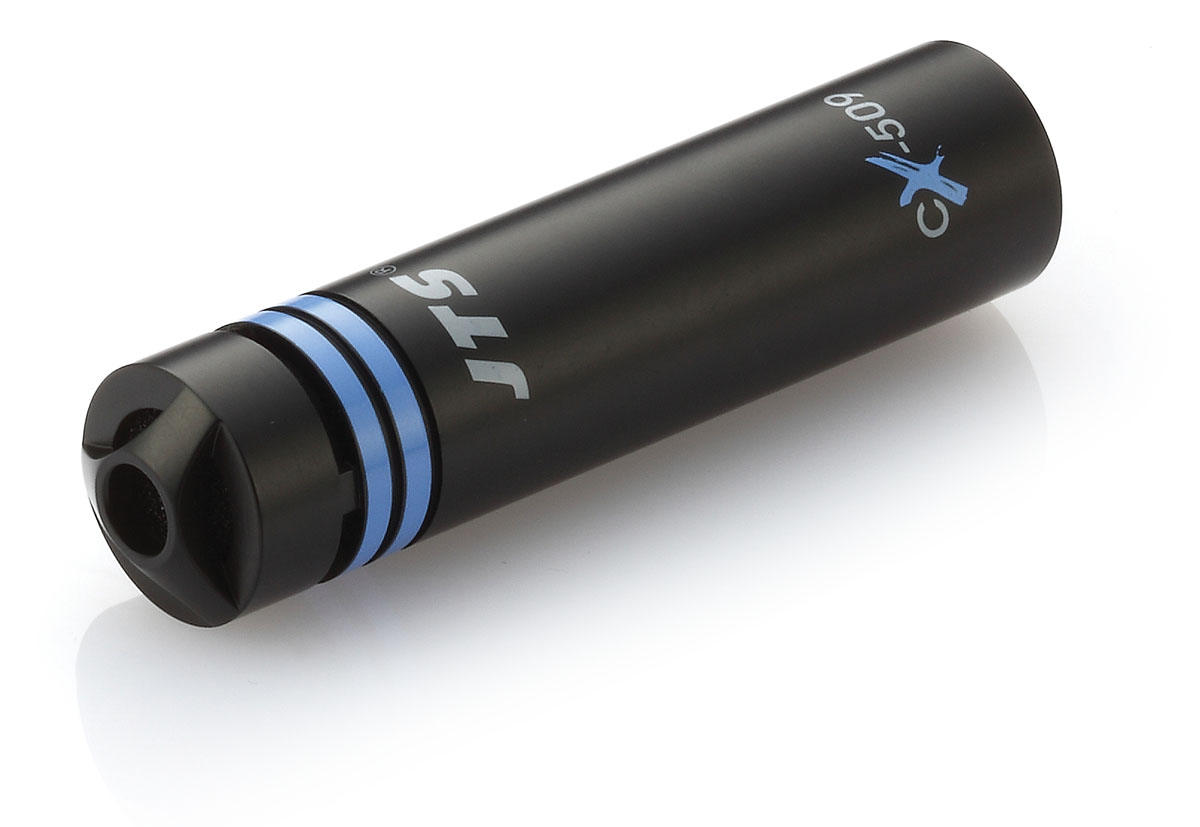

Low Profile Condenser Instrument Microphone

The CX-509 is a low profile condenser instrument microphone.For sound pickup of hi-hats/cymbals as well as various percussion instruments and acoustic instruments, e.g. guitars/violins, flutes or choir voices.Unobtrusive positioning due to small dimensions Robust body with standard XLR input. Requires phantom power.Supplied with microphone holder
RETAIL:
£83.72 inc VAT
 In Stock ( 48 Available )
SKU: 81490
EAN: 4712832615814
Commodity Code: 8518100090
Country of Origin: China

OVERVIEW
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION
CX-509

The JTS CX-509 Condenser Microphone is a compact low profile microphone designed for versatile placement around the sound source. Its wide frequency response, low noise characteristics, low distortion have made the JTS CX-509 a popular choice in studio and performance applications. Excels as an Overhead Cymbal and Hi-Hat microphone as well as for Tom Toms, Percussion, and Acoustic Guitars.
SPECIFICATIONS
Frequency response:
30Hz - 18kHz
Net Dimension (WxHxD):
ÿ19mm (W)* 79mm (H)
Net Weight:
60g
S/N Ratio:
70dB
Output Connector:
3 Pin Male XLR
Power Supply:
9-52V DC Phantom Power
Microphone Type:
Uni-directional Condenser
Current Consumption:
≤3mA
Impedance:
220Ω
Sensitivity (at 1kHz):
-65dB*(0.56mV)*0dB
Max. SPL for 1% THD:
130dB
