JTS

CX-505

Condenser Stage Headset Microphone

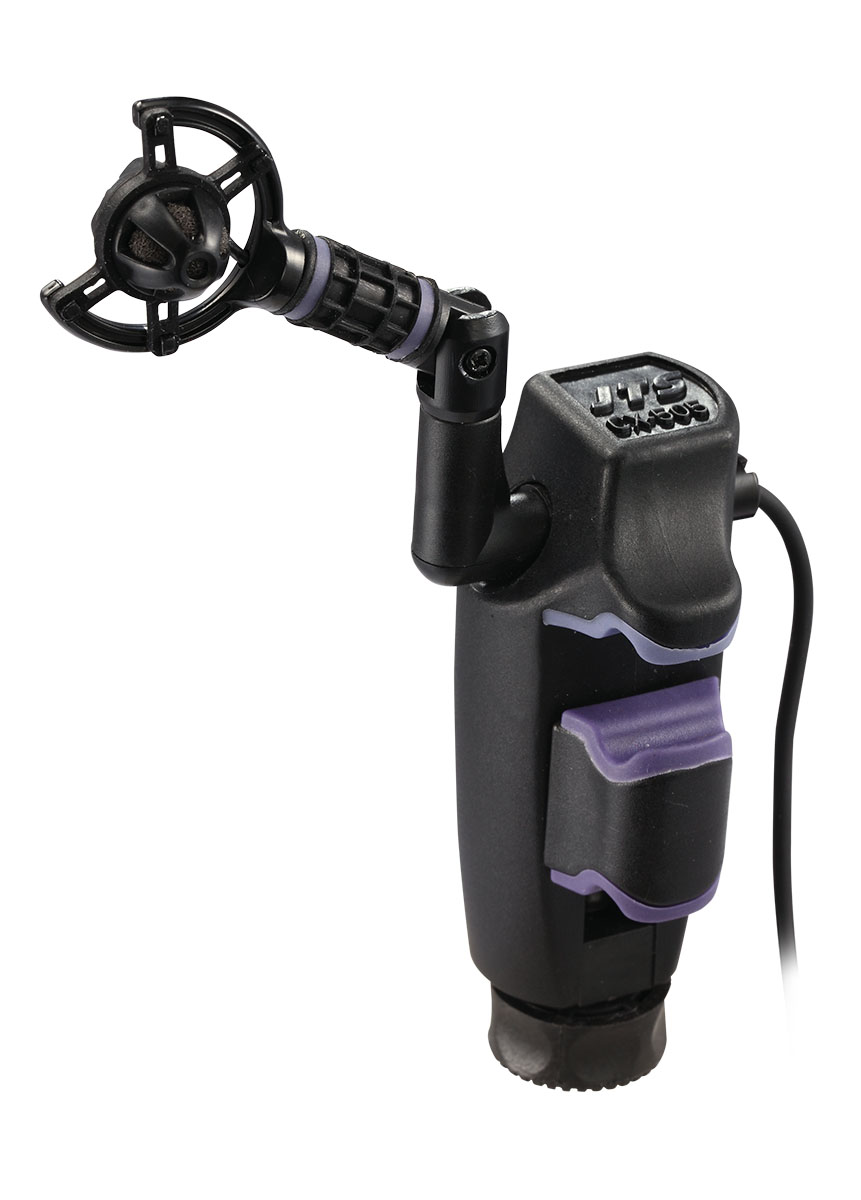

The CX-505 is a Condenser Instrument microphone. The Miniature profile makes it unobtrusive for the musician. The shock mount featuring a sturdy clamp and spider suspension ensures secure mounting on drum rims, percussion instruments, and cymbal stands in either a horizontal or vertical position without unwanted resonance. Standard XLR connection.Phantom power required. Supplied in a robust transport case
RETAIL:
£109.47 inc VAT
 In Stock ( 13 Available )
SKU: 81486
EAN: 4712832615784
Commodity Code: 8518100090
Country of Origin: China

OVERVIEW
FEATURES
SPECIFICATIONS
PRODUCT DESCRIPTION
CX-505
With a smooth uniform frequency response, the JTS CX-505 is optimized for use with drums and percussion.
The unique design and miniature profile avoids interference with drummers and percussionists.
Low noise electronic circuitry together with balanced output provides isolation from electronic noise.
The shock mount clamp greatly reduces extraneous mechanical noise and ensures secure mounting on drum rims and most percussion instruments in a horizontal or vertical position.
KEY FEATURES

* Excellent reproduction without coloration.
* Adjustable arm on the shock mount clamp allows for optimal placement positioning and eliminates the use of mic stands, thereby reducing stage clutter and set up time.
* Newly added spider sus

SPECIFICATIONS
Frequency response:
50Hz - 18kHz
Net Weight:
230g
Output Connector:
3 Pin Male XLR
Power Supply:
9-52 VDC phantom power
Microphone Type:
Electret Condenser
Output Impedance:
220Ω ± 30%
Polar Pattern:
Cardioid
Sensitivity (at 1kHz):
-64dB*(0.63mV) at 1,000 Hz
Max. SPL for 1% THD:
130dB
Touch Noise:
Super Low
