JTS

CS-1CH

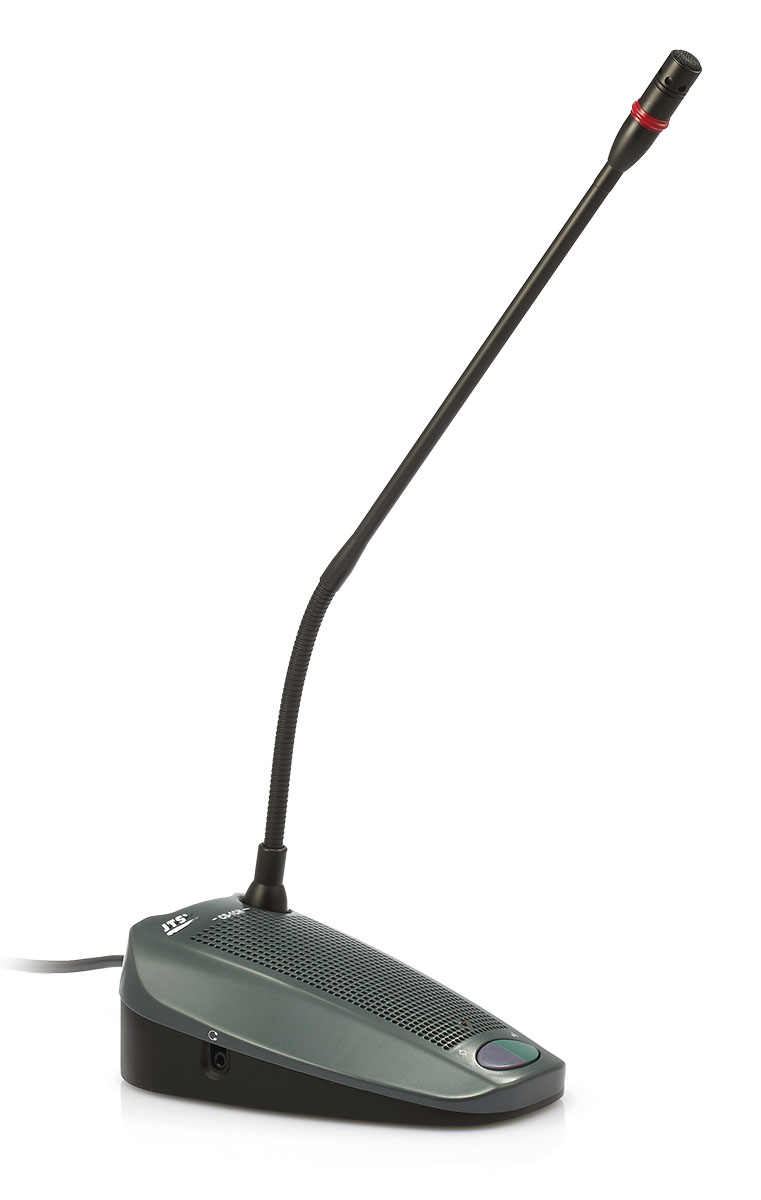

Part of the CS-1 Conference system. The CS-1 CH chairman unit has priority over the delegate units. There is a priority key which can either mute or turn off all delegate units, or cancel all applying. The chairman unit has the right to accept or refuse applying. Requires an optional Control unit and optional delegate units for a complete system.
RETAIL:
£193.19 inc VAT
 In Stock ( 1 Available )
SKU: 81611
EAN: 4712832616453
Commodity Code: 8518100090
Country of Origin: China

OVERVIEW
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

Conference System - Chairman Station



The chairman unit not only provides the same function as the delegate unit, but also supports the addition of a “Priority button”, that enables the chairman to control the discussion by temporary or permanently overriding and deactivating all active microphones of the delegate units.

SPECIFICATIONS
Frequency response:
50Hz - 18kHz
Net Dimension (WxHxD):
360*150*90 mm
Net Weight:
1745g
Max SPL for 1% THD:
125dB
Output Level:
-8dBV / +2 dBV (nominal / maximum)
Output Impedance:
22Ω
Maximum in total:
50
Maximum per trunk output:
25
Maximum trunk length using CS-1:
Standard Cabling - 100m
Type:
Back Elecret Condenser
Polar Pattern:
Cardiod
Gooseneck Length:
15î (400mm)
Dimensions (HxWxD) without mic:
170*115*65 mm
Length of mic:
400mm
Weight:
1100g
