JTS

SGM-14

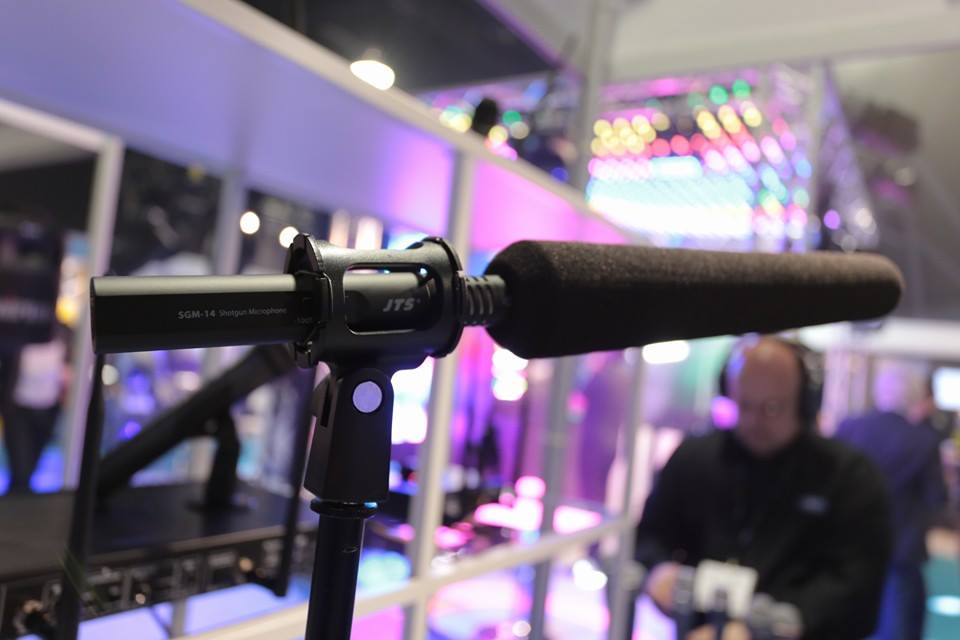

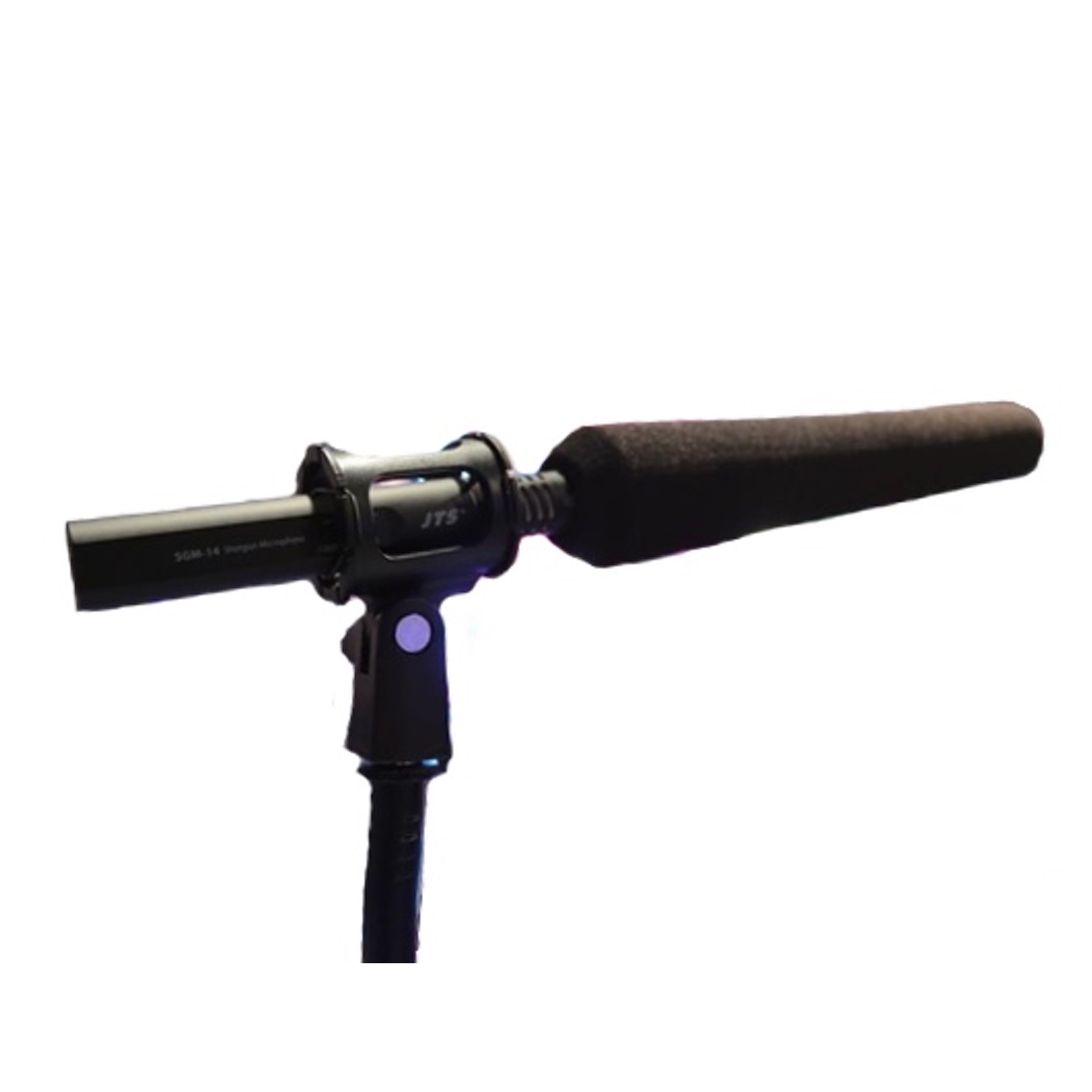

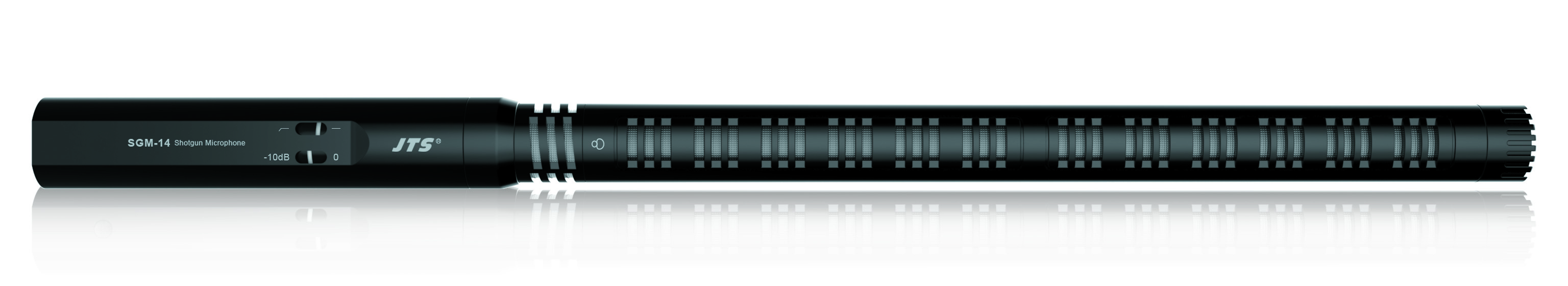

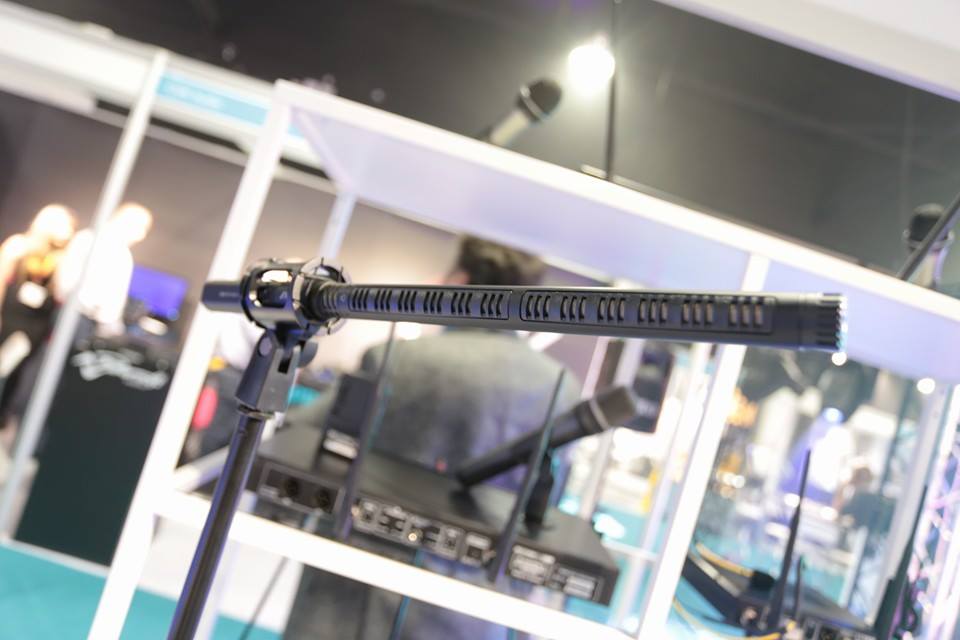

The JTS SGM-14 'shotgun' microphone. Ideal for outdoor recording and other specialised uses, the hypercardioid, electret-condenser SGM-14 provides the narrow acceptance angle required for these applications and comes with both low cut and pad facilities included. Operating on 9-48 V DC phantom power, the 366.7 mm long SGM-14 is built to the usual rugged JTS professional standard and comes complete with a windscreen and mic holder.
RETAIL:
£294.92 inc VAT
 In Stock ( 29 Available )
SKU: 81565
EAN: 4712933620649
Commodity Code: 8518100090
Country of Origin: China

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

Shotgun Microphone (Hypercardiod)



This 14” shotgun microphone is designed for ENG, outdoor recording and other specialized uses. It provides narrow acceptance angle and is desirable for long distance sound pick up.

Low cut and pad are available for best micing effect.

KEY FEATURES

JTS SGM-14 'shotgun' microphone. Designed for ENG, outdoor recording and other specialised uses, the hypercardioid, electret-condenser SGM-14 provides the narrow acceptance angle required for these applications and comes with both low cut and pad facilities included. Its extreme directivity enables it to reject or cancel unwanted signals, making it ideal for long distance miking at sport venues, for front of stage use for picking up audience reaction and ambience and similar distance applications.

A 78dB signal to noise ratio means the JTS SGM-14 keeps background noise at a very low level, while a full 20-20,000 Hz frequency response guarantees audio fidelity. Operating on 9-48 VDC phantom power, the 366.7 mm long SGM-14 is built to the usual rugged JTS professional standard and comes complete with a windscreen and mic holder at a very competitive price.

SPECIFICATIONS
Frequency response:
20Hz - 20kHz
Length:
355.7mm
Sensitivity:
-52±3dB*(2.5mV)*0dB
S/N Ratio:
78dB
Output Connector:
3 Pin Male XLR
Power Supply:
9-48VDC phantom power
Microphone Type:
Electret Condenser
Polar Pattern:
Hypercardioid
Attenuation Switch:
-10dB
Low Frequency Roll-Off:
80Hz
Impedance:
Rated impedance is 200Ω
Max. SPL for 1% T.H.D:
125dB (135dB with -10 dB Attenuation)
