- The CM-602 is a simplified version of CM-601 with ON/OFF switch only.
- The CM-601 is designed for conference, house of worship, and theatre applications.
- The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule.
- The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF,PUSH TO TALK and PUSH TO MUTE three modes.
- The precisely calculated circuit plus tailored capsule response ensure transparent sound quality.
- Internal shock mount minimises mechanical noise.

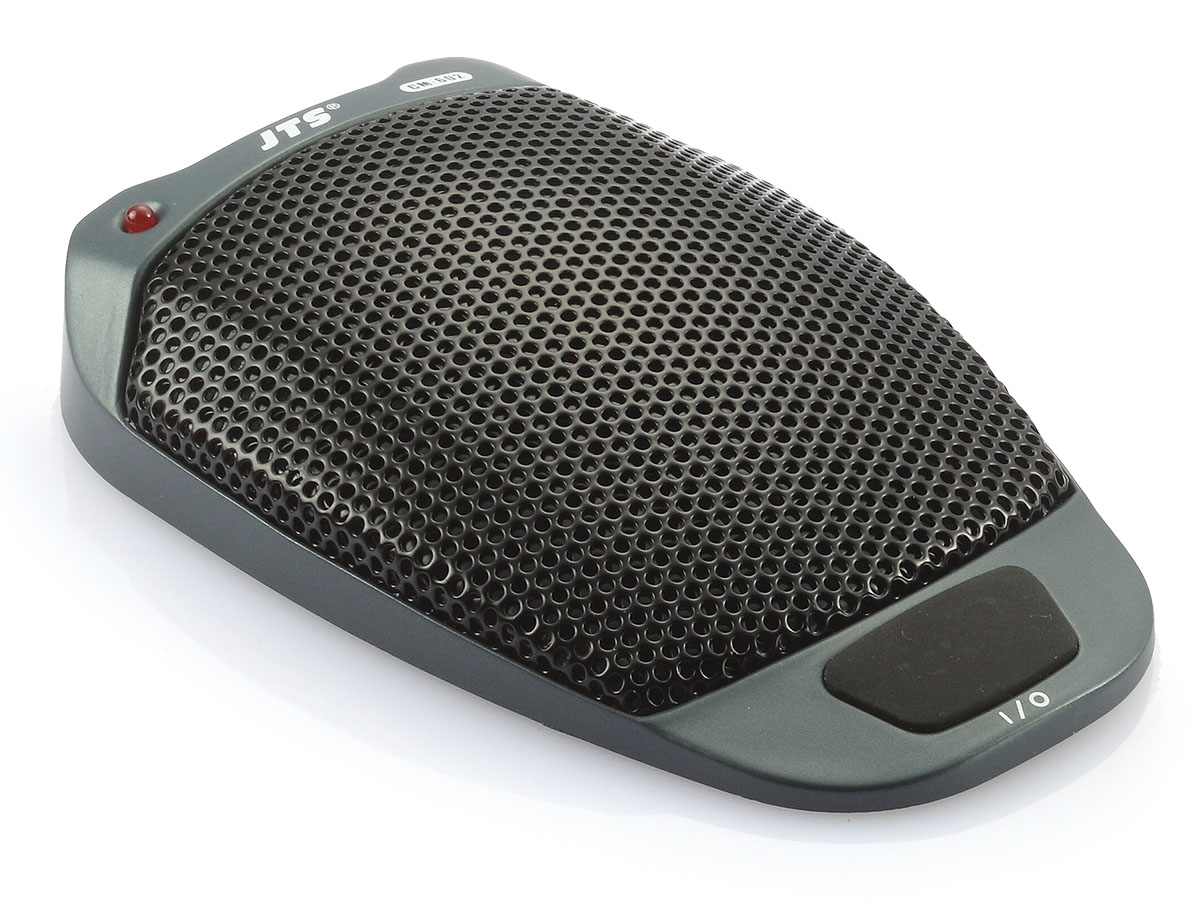

CM-602
Boundary Microphone
The CM-602 is a semi-cardiod Electret boundary microphone. features On/off switch with power LED.. Elastic cartridge suspension for preventing impact sound and structure-borne noise. Requires Phantom power supply DC 48 V. Supplied With 6 m connection cable, 3-pole XLR
SKU: 81577
EAN: 4712832616392
Commodity Code: 8518100090
Country of Origin: China
PRODUCT DESCRIPTION
SPECIFICATIONS
Frequency response:
30Hz - 12kHz
Net Weight:
88g
Output Connector:
3 Pin Male Mini XLR
Power Supply:
12-52V DC Phantom Power
Microphone Type:
Electret Condenser
Current Consumption:
≤6mA
Directional Pattern:
Half-Cardiod
Low Frequency Roll-Off:
80Hz, 120Hz
Impedance:
100Ω
Sensitivity (at 1kHz):
-53±3 dB* (2.23mV)*0dB
Max. SPL for 1% THD:
125dB
Switches:
Push On/Off, Function Selection: Push On/Off or Momentary On/Off, Low Cut
