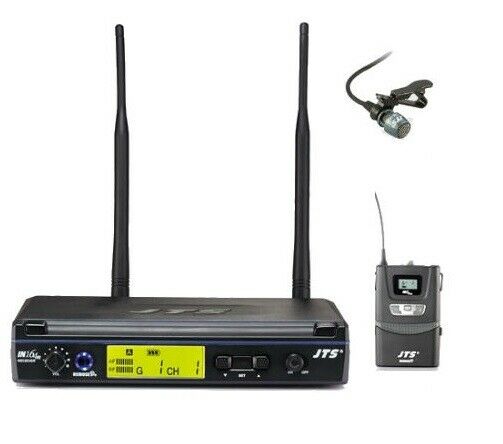

The JTS IN-164R/IN-264TB+CM501 is a UHF PLL Single Channel Diversity Lapel Wireless Microphone System, which features the worlds first remote control RF setting function, that allows automatic remote control frequency settings of the Transmitter from the Receiver.
IN-164R/IN-264TB+CM501
UHF PLL Single Channel Diversity Lapel Wireless Mic System
SKU: 81221
EAN: 4712832615401
Commodity Code: 8518100090
Country of Origin: Taiwan
PRODUCT DESCRIPTION
KEY FEATURES
Some of the features of the IN-164R/IN-264TB+CM501 include:
- 200 - 480 meter operating distance
- Remoset, which uses an RF signal to send frequency chaneg settings from the receiver to the transmitter
- LCD Displays, including: RF level, audio level, low battery indicator, antenna status and channel selection
- It has a bandwidth of 36 MHz
- 6 Preset groups, with a maximum of 23 channels per group
SPECIFICATIONS
S/N Ratio:
>105dB
Operation Voltage:
12-18 VDC, 500mA
Output Connector:
1 XLR Balanced Socket, 1 Ø6.3mm unbalanced phone jack
Frequency Deviation:
±48KHzUM3, AA 1.5V*2UM3, AA 1.5V*2
Battery:
UM3, AA 1.5V*2
Carrier Frequency Range:
36MHz within 502~960 MHz
Stability:
±10KHz
REMOSET:
2.4GHz
T.H.D:
<0.6%@1KHz
