Applications Include:
* Personal Monitor Mixing
* Courtrooms, Meeting Rooms
* Restaurants, Schools
* House of Worship
* Aerobics/Health Club

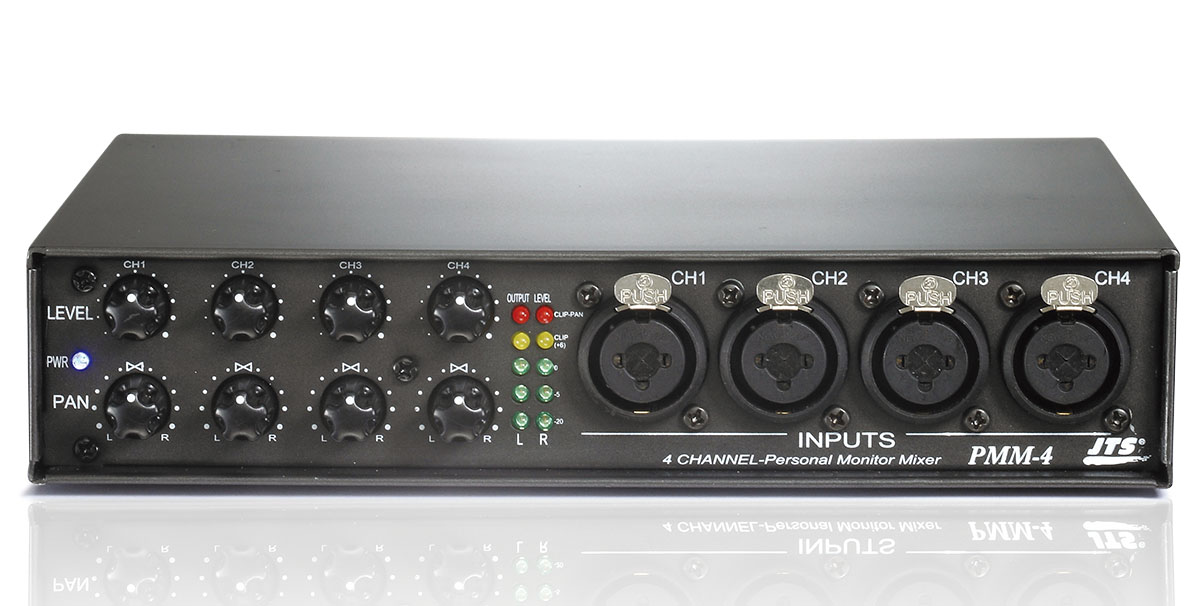

PMM-4
The PMM-4 is ideal as a compact personal monitor mixer for meeting rooms, Houses of Worship, broadcast and educational public address systems. Four inputs with XLR 1/4” phone jack combo connecter. It has two additional auxiliary inputs and four XLR split outputs.
SKU: 81310
EAN: 4712832616439
Commodity Code: 8518100090
Country of Origin: Taiwan
KEY FEATURES
SPECIFICATIONS
Frequency response:
22Hz - 22kHz
Input impedance:
5.9KΩ
Net Dimension (WxHxD):
205x 212x 43.5mm
Net Weight:
1.41kg
Power Supply:
12-18V DC, 600ma
CMRR:
>70dB
Input connectors:
4x XLR / 1/4î balanced jack combo sockets
Aux Input Connector:
2x 1/4" jack sockets
Aux Input Impedance:
18.2 KΩ (MONO:9.1 KΩ)
Main Mix Output Connector:
1/4" jack sockets (left/right channels)
Main Mix Output Impedance:
balanced:1KΩ, unbalanced:500Ω
Output Level (Max):
6.5±0.3dB (INPUT CH1~4)
Split Output Connector:
4x XLR
