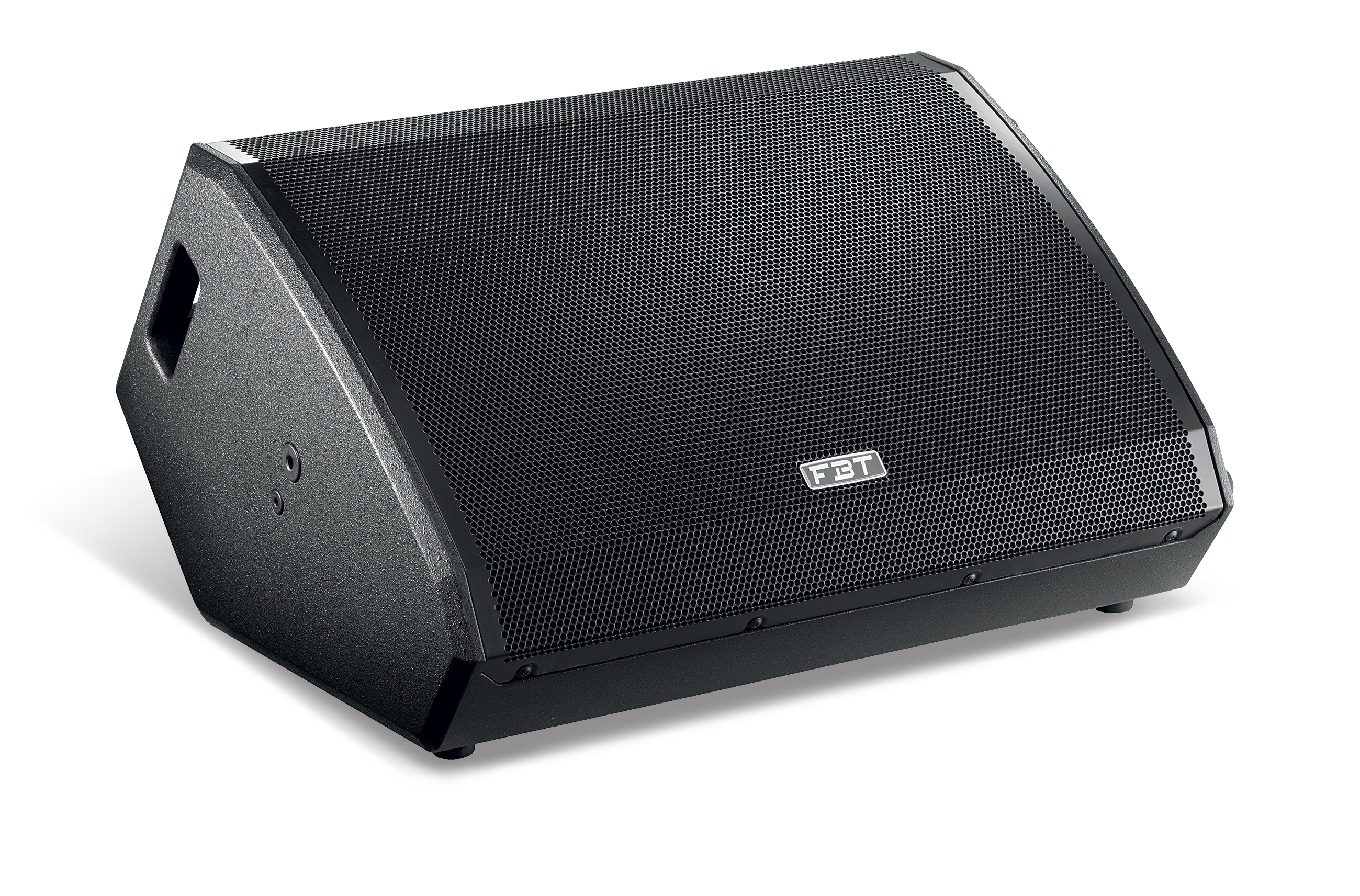

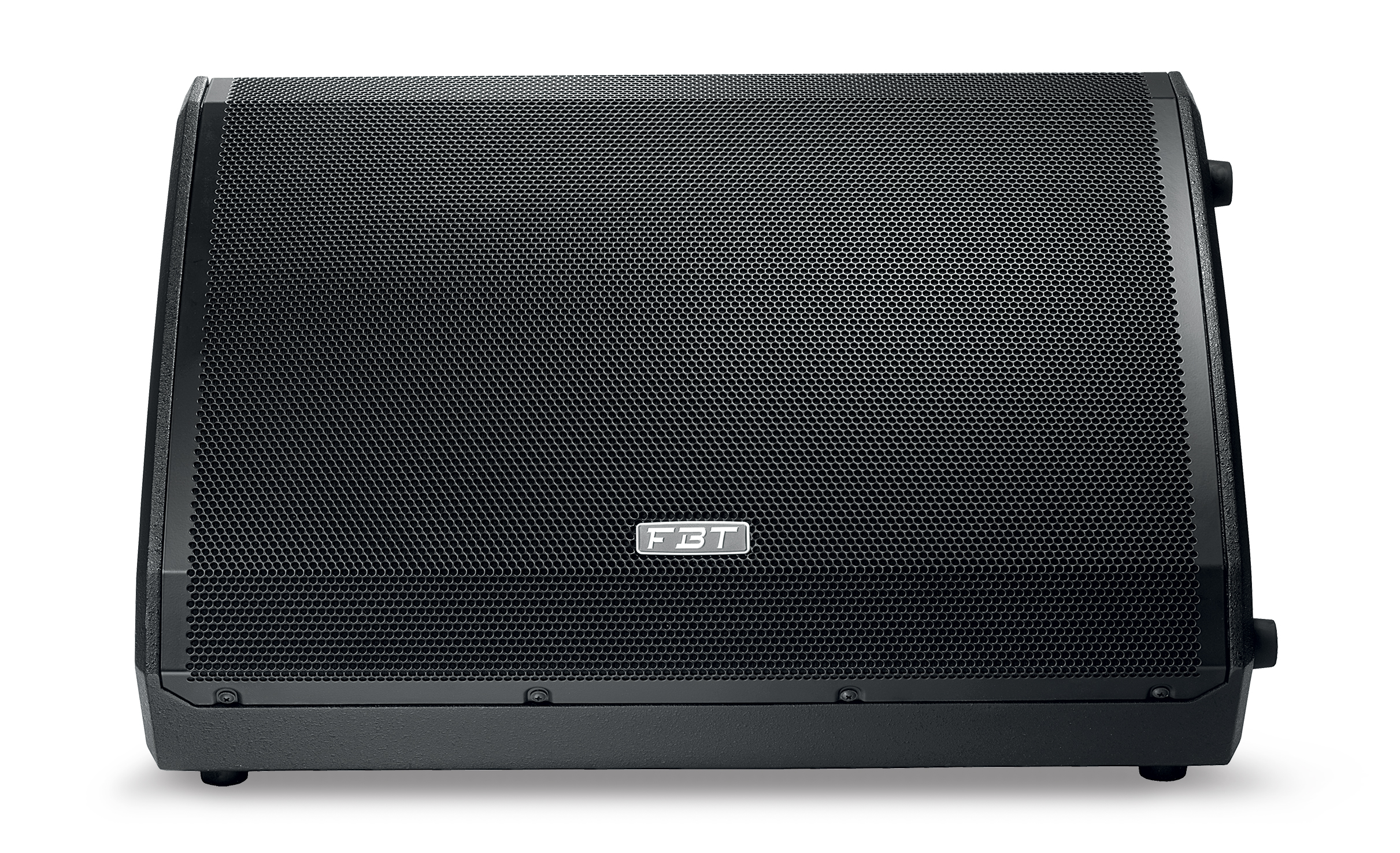

Ventis 115M Passive Stage Monitor

2-way Passive monitor - 12" + 1" - 500Wrms

The Ventis 115M is a dedicated floor monitor for use on small to medium-sized stages This passive speaker features a a 15" coaxial custom woofer with 2,5" voice coil and 1" exit throat B&C with 1,7" voice coil. The rear panel provides two NL4 Neutrik speakon connectors. Recommended amplifier 500W/8ohm will deliver 130dB SPL. optional brackets for installation are available
RETAIL:
£910.00 inc VAT
 In Stock ( 4 Available )
SKU: 41219
EAN: 8034138412192
Commodity Code: 85182200
Country of Origin: Italy

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

Passive Reinforcement Monitor
500W/8ohm - 130dB SPL


Introducing the FBT VENTIS 115M: a sleek, powerful floor monitor designed to thrive on small to medium-sized stages where exceptional vocal and instrument performance is essential. Crafted with durable 0.59" birch plywood and fortified with internal bracing, this passive speaker ensures enduring quality. Boasting a two-way design, it showcases a 15" coaxial custom woofer with a 2.5" voice coil alongside a 1" exit throat B&C featuring a 1.7" voice coil, delivering a frequency range spanning from 55Hz to 18kHz. With a maximum SPL of 130dB, it delivers crystal-clear sound for both speech and music applications. Equipped with a built-in passive crossover with soft-trip protection for the LF woofer and HF driver, and featuring two NL4 Neutrik speakon connectors on the rear panel, connectivity is a breeze. Additionally, optional mounting brackets enable versatile placement on walls or ceilings, while an integrated steel pole mount effortlessly transforms it into a standard vertical speaker configuration. Meet your audio needs with the versatility and performance of the FBT VENTIS 115M.

KEY FEATURES
  • 2-way passive reinforcement monitor
  • 15" coaxial custom woofer
  • 1" exit throat B&C
  • 500W / 8 Ohm 90° conical dispersion
  • Built-in passive crossover
  • Speakon NL-4 connectors
  • Wall bracket mount thread (optional)
  • 35mm top-hat
  • Two integrated handles
SPECIFICATIONS
Configuration:
2 Way coaxial
Low frequency woofer:
15" / 2.5" coil
High frequency driver:
1" / 1.7" coil
Crossover frequency:
1.4kHz
Input connector:
2x Neutrik SpeakON NL4 (in & thru)
Recommended HP filter:
45Hz - 24dB oct.
Recommended Amplifier:
500W RMS
Long Term Power:
250
Short Term Power:
1000W
Sensitivity (@1W/1M:
99dB
Impedance:
8 Ohm
Frequency Response:
55Hz - 18kHz (@ -6dB)
Maximum SPL Cont/Peak:
126dB / 130dB
Dispersion:
90° conical
Net Dimension (WXHXD):
620 x 342 x 517 mm
Net Weight:
20.3kg
Transport Dimension (WXHXD):
685 x 404 x 532 mm
Transport Weight:
22.3kg
