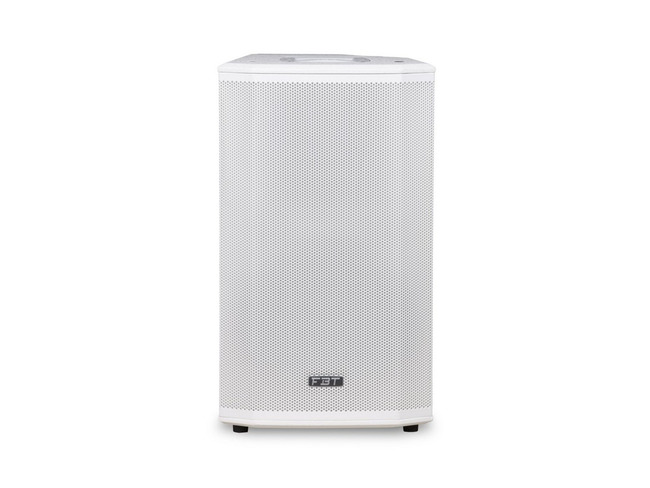

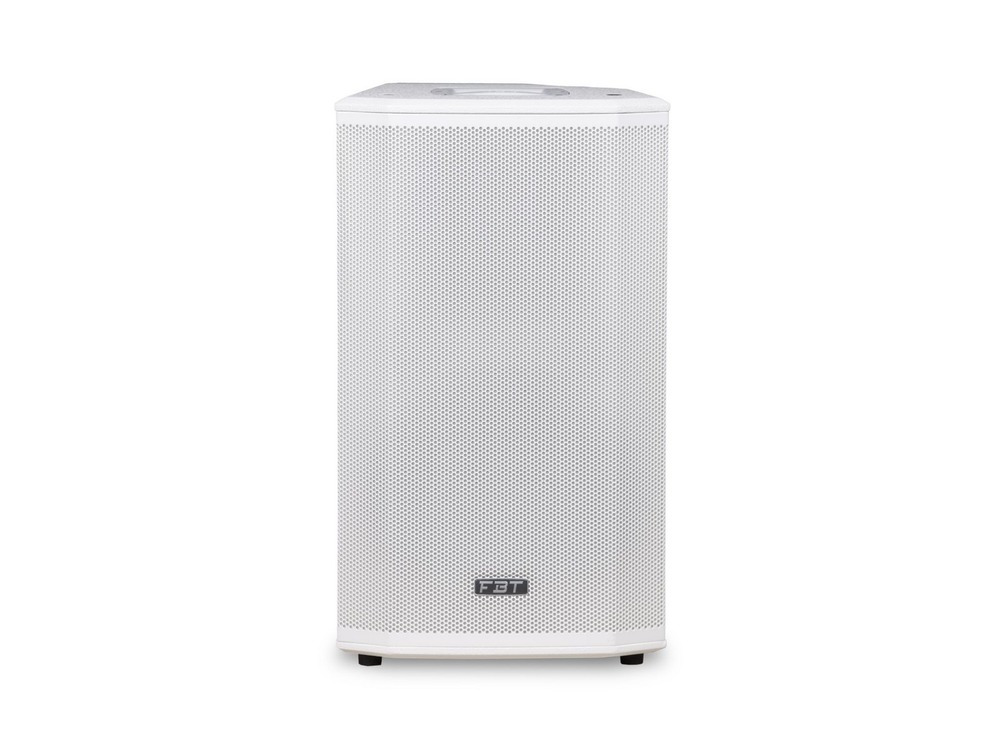

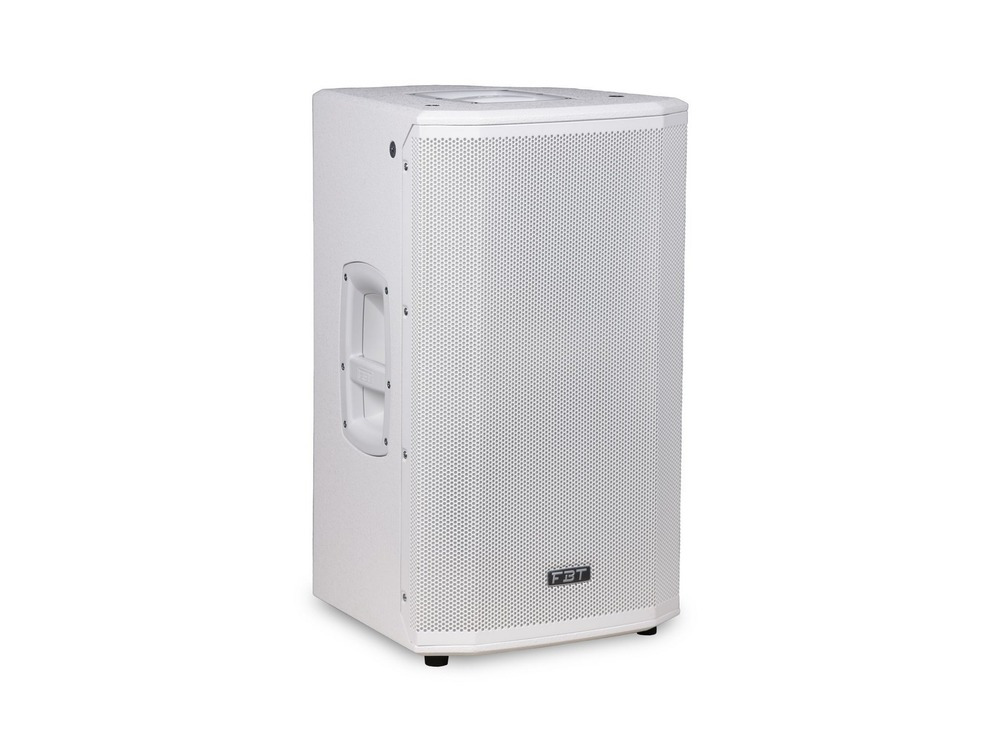

Ventis 112

2-way Passive speaker - 12" + 1" - 400Wrms

Ventis 112 is part of the Ventis range which are ideal for portable performance or fixed installation. This passive speaker Features an 12" woofer and a 1" exit 1.4"VC compression driver. Recommended amplifer of 400 W at 8? will deliver 129 dB SPL connections via 2x Speakon NL4 In + Thru. All housed in a 15mm Baltic birch ply cabinet with 35mm pole mount and a full length grille. optional brackets for installation are available.
RETAIL:
£795.00 inc VAT
 In Stock ( 12 Available )
SKU: 40681
EAN: 8034138406818
Commodity Code: 85182200
Country of Origin: Italy

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

PASSIVE REINFORCEMENT SPEAKER - 400w / 8 OHM 129dB SPL

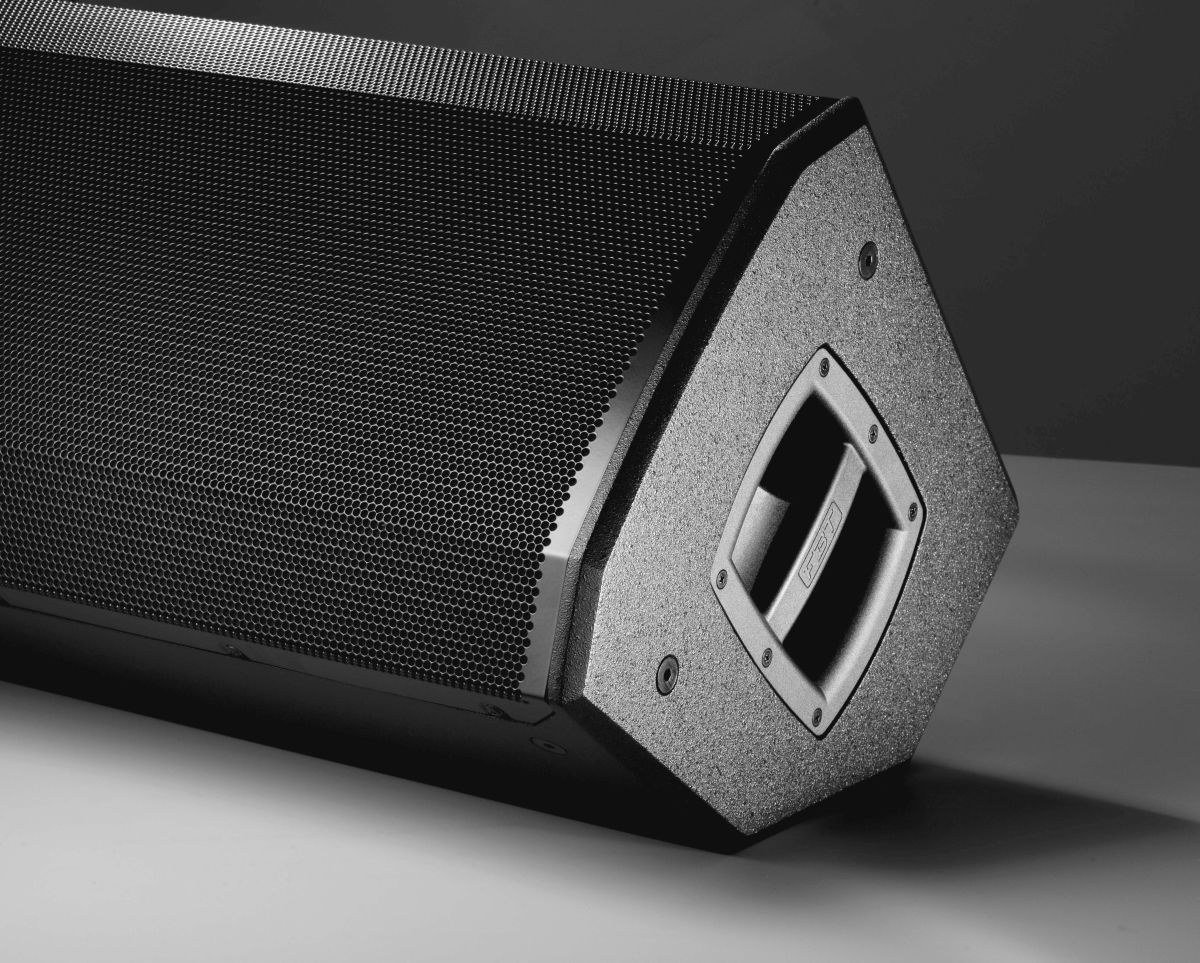

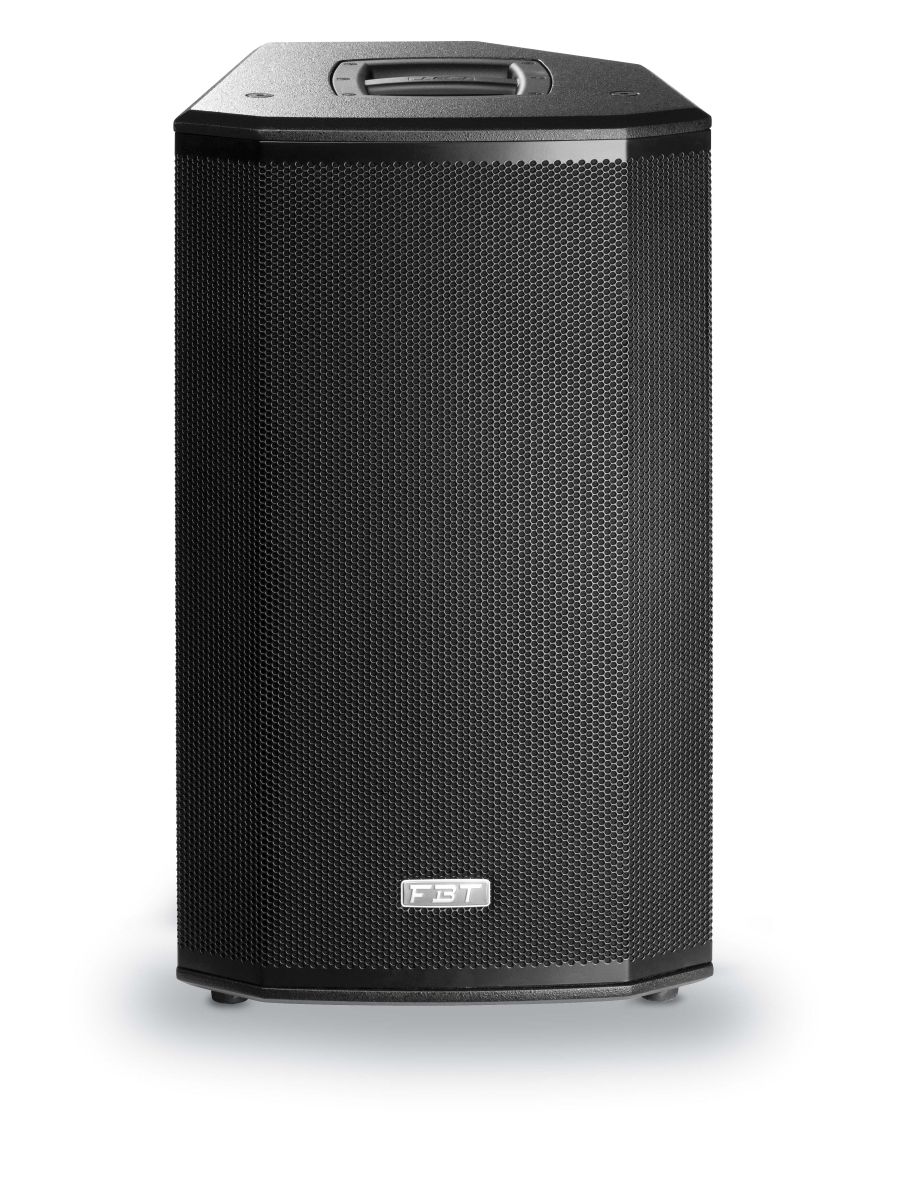

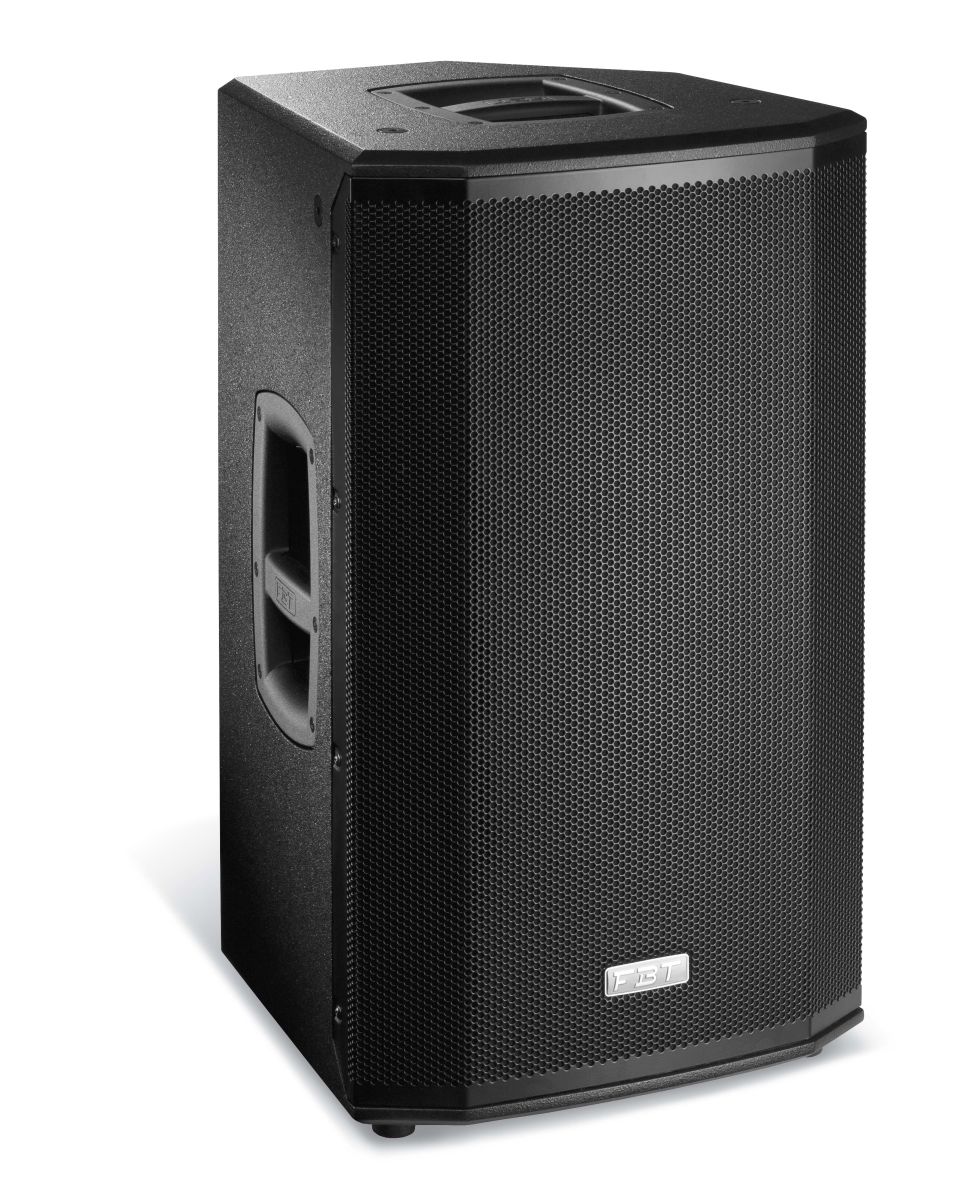

For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.

KEY FEATURES
  • Built-in passive crossover with soft-trip protection for the LF woofer and HF driver
  • Speakon NL-4 IN and LINK OUT connectors
  • 4 x M5 threaded rigging points and optional mounting hardware
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
55Hz - 18kHz -6dB
Low frequency woofer:
12" / 2.5" coil
High frequency driver:
1" / 1.4" coil
Crossover frequency:
1.6kHz
Input connector:
2x SpeakON NL4 (in & thru)
Net Dimension (WxHxD):
387 x 665 x 380mm
Net Weight:
20.1kg
Transport Dimension (WxHxD):
500 x 765 x 470mm
Transport Weight:
22.6kg
Recommended Amplifier:
400w RMS
Long term power:
200w
Short term power:
800w
Recommended HP filter:
45Hz - 12-24dB/Oct
Maximum SPL continuous/peak:
125/129db
Nominal Impedance:
8 Ohm
Sensitivity (@1W/1m):
98dB
Dispersion (H x V):
80? x 50? rotatable
