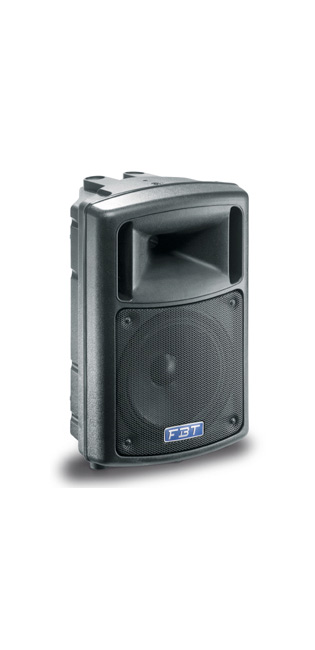

Evo2MaxX 2a

The Evo2MaxX 2a is an active 10" speaker with a B&C 1" compression driver Featuring a 400W + 100W RMS 128dB SPLwith all new DSP encapsulated in a sturdy, gas-injected polypropylene molded enclosure, engineered in Italy to contain undesired resonance.
RETAIL:
£559.81 inc VAT
 Out Of Stock
Call for availability
SKU: 37853
EAN: 8034138378535

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

Processed Active Speaker

400W + 100W RMS 128dB SPL

  • Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance.
  • High efficiency loudspeakers custom made for FBT with a weather resistant coating, allowing use in covered outdoor applications.
  • B&C HF compression drivers.
  • Latest Class D, 400W LF and 100W HF power amplifiers with high efficiency switch mode power supplies. These amplifiers boast an extremely lightweight design with passively cooled circuitry, meaning no noisy fans!
  • New digital signal processor with dynamic equalizations and sophisticated dynamic limiters four improve sound quality and SPL granting reliable and distortion-free audio reproduction
  • New 4 DSP presets for improved versatility and ease of use
  • Premium sound quality as results of extensive listening test
  • High SPL thanks to FBT’s new digital limiter algorithms and high power class D amplifier
  • Ergonomic carrying handles, M10 fly points, a top-hat speaker stand socket and a stage monitor taper – all included to ensure superb versatility for live sound events and permanent installations.


The presets include:

ORIGINAL: Corresponding FBT benchmark sound for use in general applications.
FLOOR/VOCAL: The Evo2MaxX immediately becomes an ideal stage monitor. Also suited for high clarity and intelligibility vocal reproduction.
BOOST/LOUNGE: Providing loudness contour with increased bass response for a relaxing and very enjoyable listening, especially at low and medium volume.
CLUB/DJ: Providing all the punch and full-bodied response required by DJ users, suitable for high volume DISCO and PARTY applications.
KEY FEATURES
  • 2-way, bi-amplified, bass reflex design cabinet.
  • 250mm (10”) LF woofer with 50mm (2”) voice coil, custom made for FBT.
  • 25mm (1”) throat exit B&C HF compression driver.
  • Frequency response from 58Hz to 20 kHz.
  • Biamped: 400w RMS LF, 100w RMS HF, Class D power amplifiers with switch mode power supplies.
  • Digital Signal Processor with 4 Equalization Presets.
  • Control Panel: features balanced XLR/Jack input and XLR link out, Volume, EQ Presets, HP Filter, 3 status LED indicators.
  • 90°H x 60°V Constant Directivity Horn.
  • Sturdy gas-injected polypropylene molded enclosure with one integrated handle and Stage Floor Monitor taper.
  • 2 x M10 suspension points, 35mm (1⅜”) top-hat speaker stand socket, wall bracket mount flange plate.
  • Enclosure suitable for stacking.
  • Extremely light, Net Wt. only 12 kg (26.5 lb).
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
58Hz - 20kHz
Low frequency woofer:
10" with 2" VC
High frequency driver:
1" with 1.4" VC
Maximum SPL cont/peak:
122.5 / 128dB
Dispersion:
90 x 60 (HxV)
Input impedance:
22 Kohm
Crossover frequency:
1.8Khz
Input connector:
XLR with Link out
Net Dimension (WxHxD):
352 x 550 x 307mm / 13.9 x 21.6 x 12.1in
Net Weight:
12kg / 26.5lb
Transport Dimension (WxHxD):
435 x 630 x 395mm / 17.1 x 24.8 x 15.5in
Transport Weight:
14kg / 30.86lb
AC Power requirements:
450VA
Built-in amplifier LF/HF:
400/100w RMS
Built-in amplifier peak LF/HF:
800/200w
Power cord:
5m IEC
