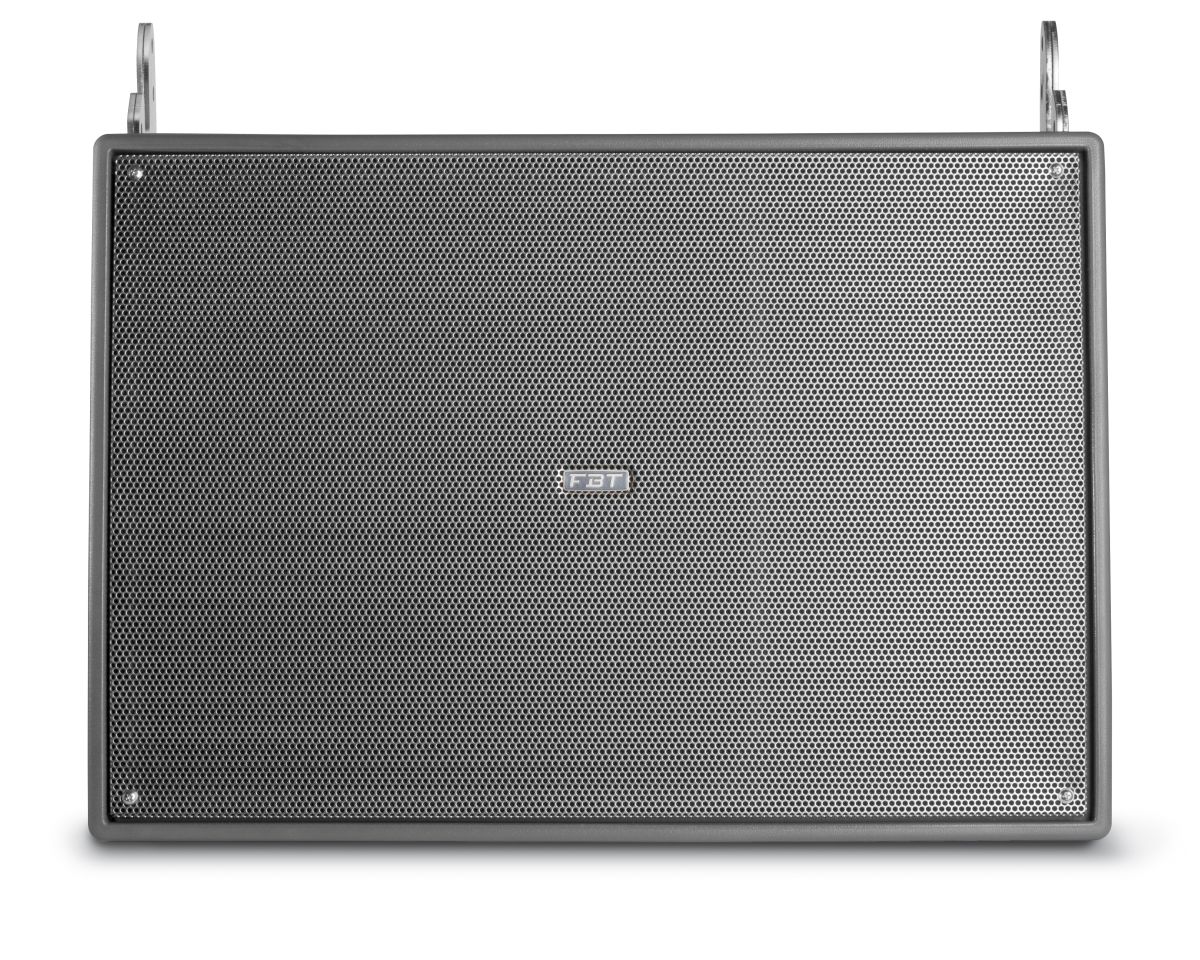

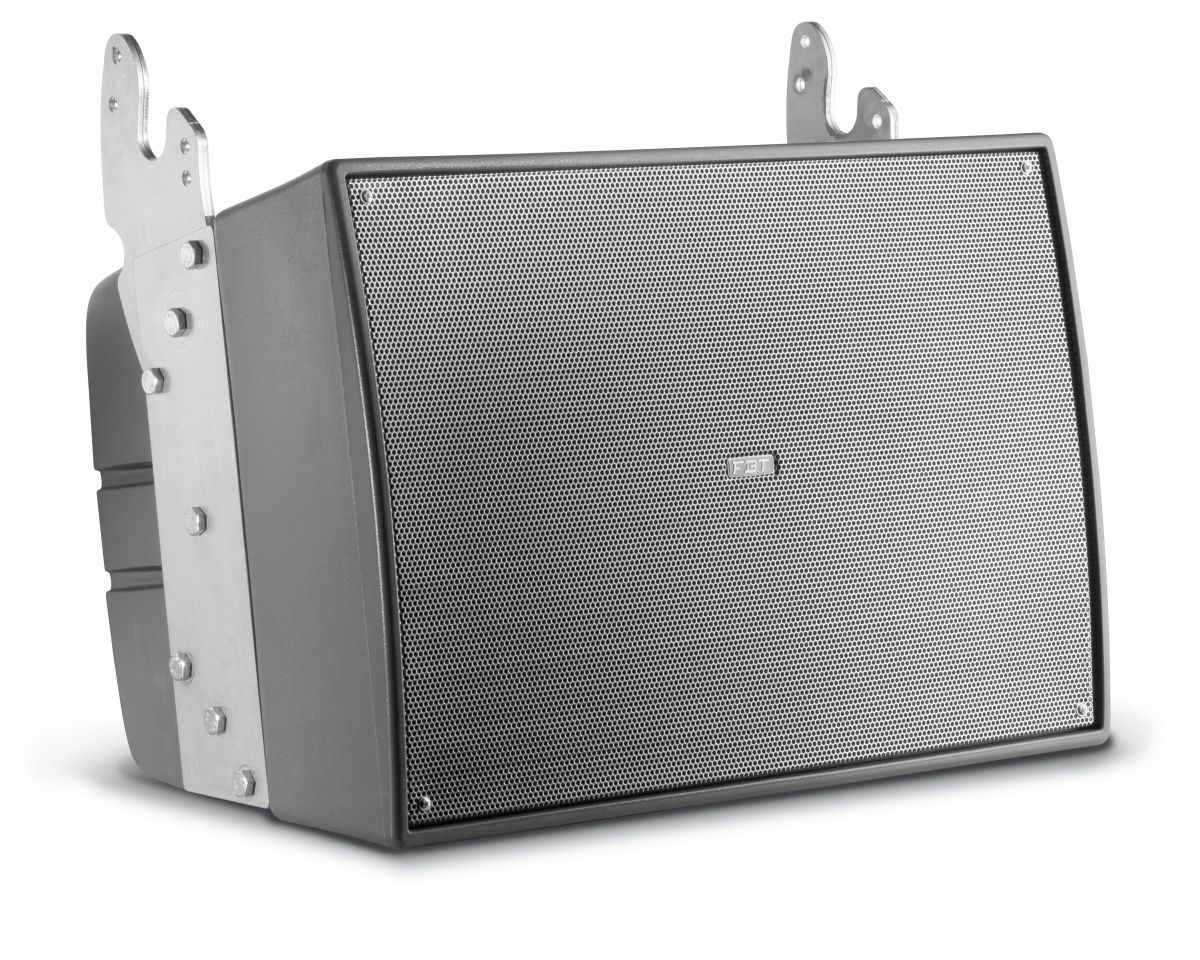

SHADOW 142L

The Shadow 142L is a flyable passive line array system. Recommended amplifier 1000W / 8ohm will deliver 137dB SPL. Ideal in both indoor and outdoor venuesbecause of its IP55 weather resistant rating. 1x 14" woofer and 2 x 1.4" HF drivers deliver 100H x 15V degree dispersion .
RETAIL:
£1,910.05 inc VAT
 Out Of Stock
Call for availability
SKU: 36197
EAN: 8034138361971
Commodity Code: 85182200
Country of Origin: Italy

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

14” Line Array Speaker System

1000W / 8ohm – 137dB SPL

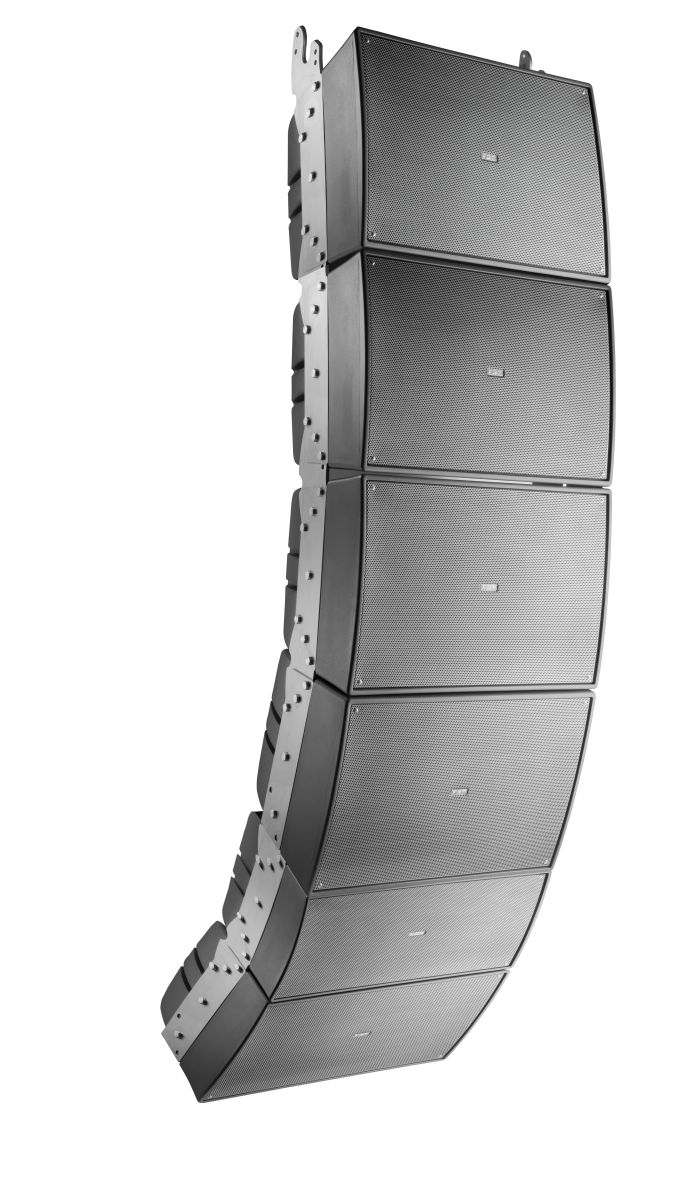

SHADOW 142L is a weatherproof full range, two way loudspeaker system offering high performance and efficiency for a wide range of professional indoor or outdoor applications.  This horn loaded design with its smooth frequency response and very high efficiency product ensures excellent quality music reproduction, and clear intelligible speech.  Line Array configuration make SHADOW 142L perfect for convention centers, stadiums, arena and many other indoor or outdoor installations, where long throw full range sound reproduction is required.

KEY FEATURES

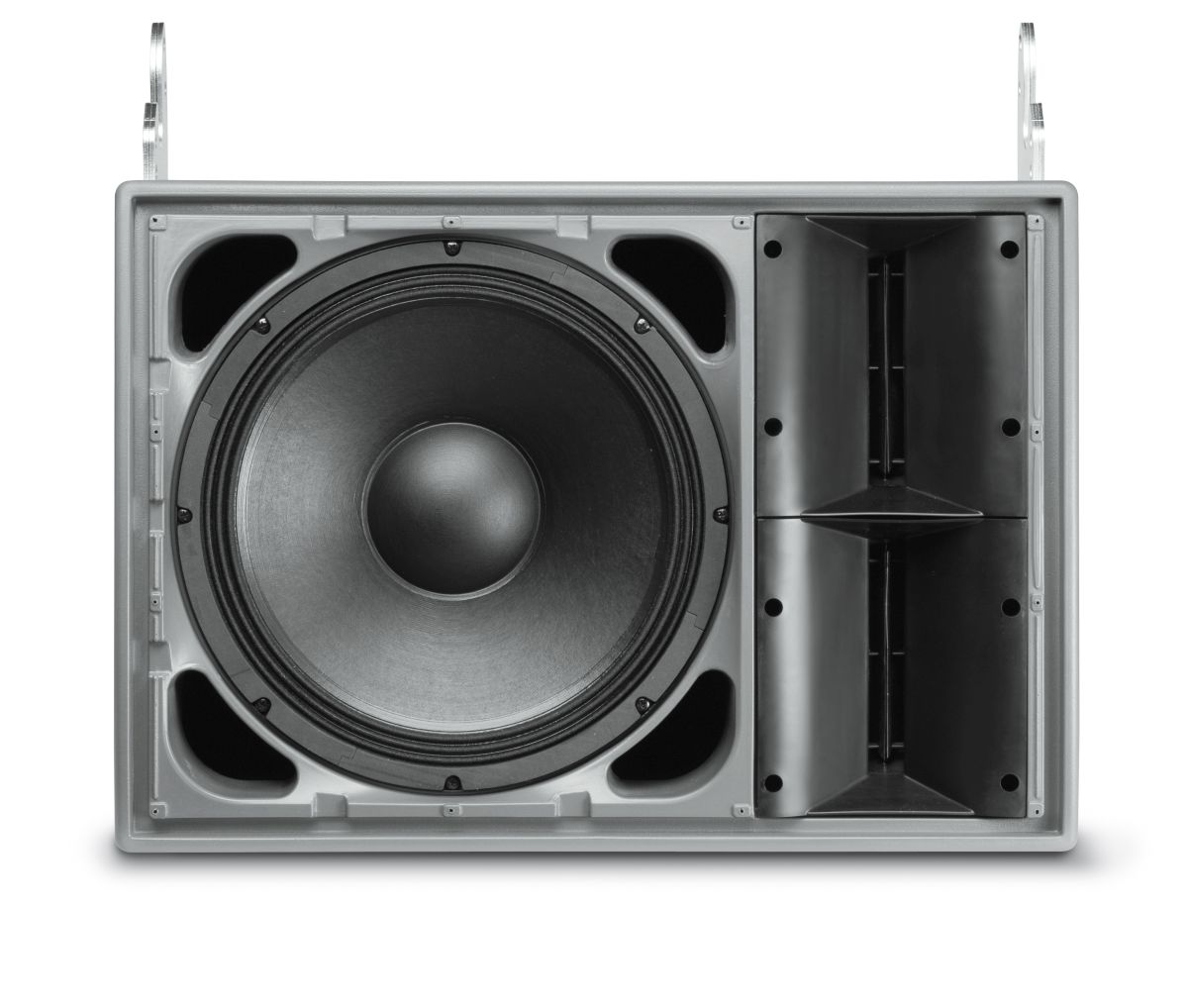

  • 14” woofer with a 3” coil.
  • HF section is a constant directivity horn loaded to 2×1.4” driver with a 2.5” coil for smooth, wide dispersion.
  • Sturdy molded polyethylene curved enclosure, full UV protection.

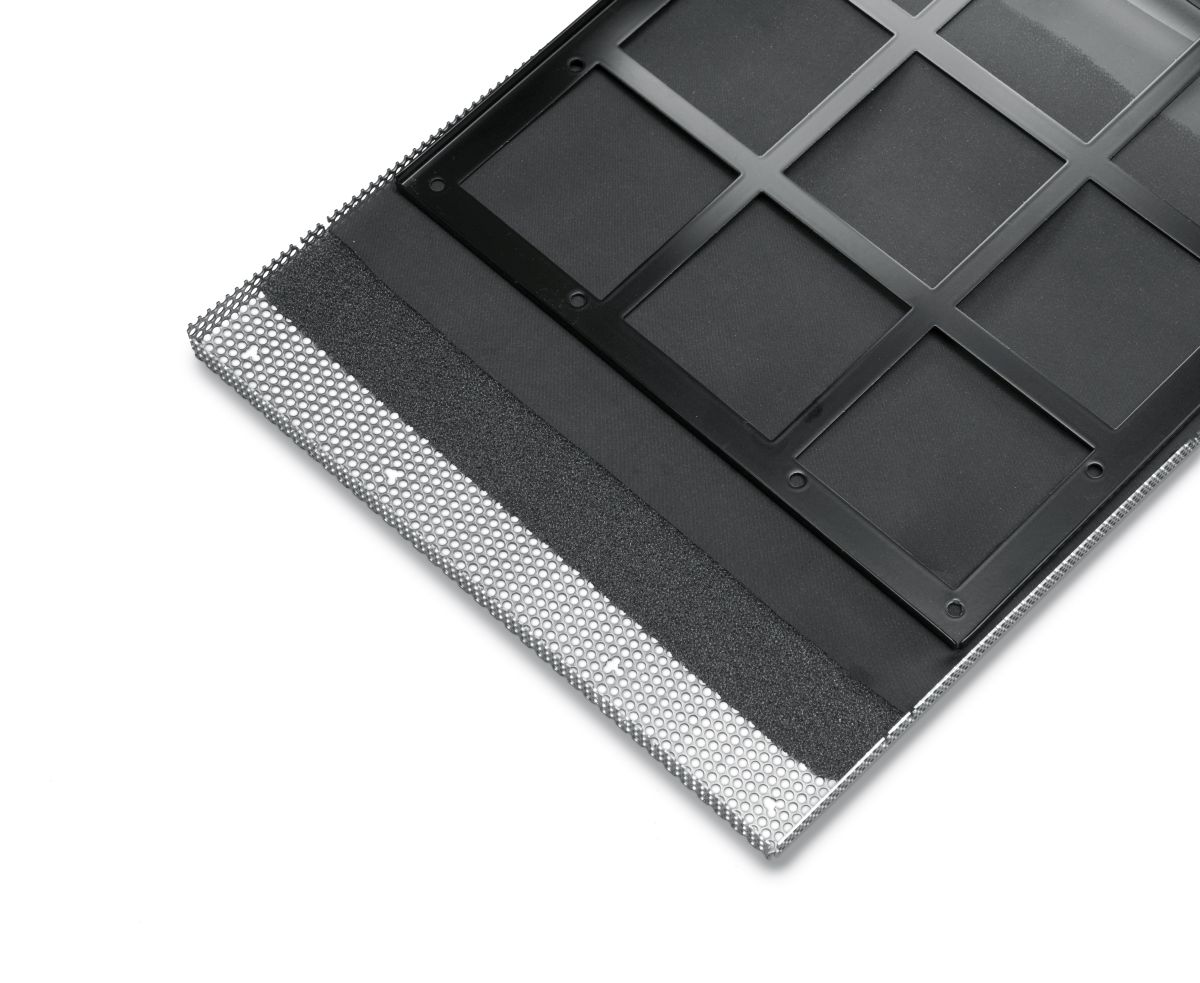

  • Water-stop grill with 3 layers of protection.
  • IP55 weather resistant.
  • 100° x 15° coverage.
  • 7.5° or 15° adjustable angle.
  • Standard grey finishes.
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
60hz - 20 kHz
Low frequency woofer:
14
High frequency driver:
2x 1.4
Maximum SPL cont/peak:
126.5 / 137db
Dispersion:
100 x 15 (H x V)
Input impedance:
8 Ohm (8/8 Optional)
Crossover frequency:
1.2kHz (Opti Bi-amp)
Input connector:
2x Amphenol LTW 4 Pole
Net Dimension (WxHxD):
615 x 430 x 514mm
Net Weight:
38kg
Transport Dimension (WxHxD):
715 x 530 x 515mm
Transport Weight:
40kg
