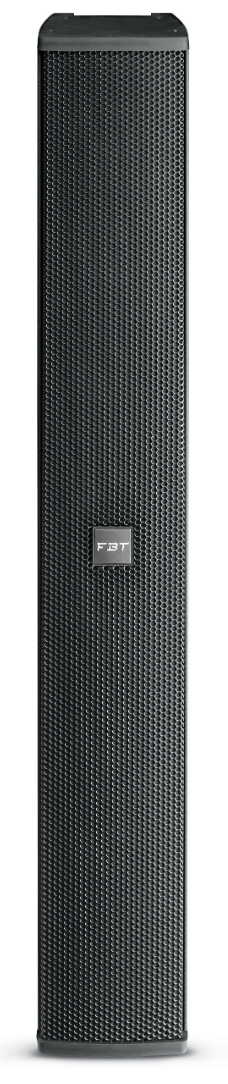

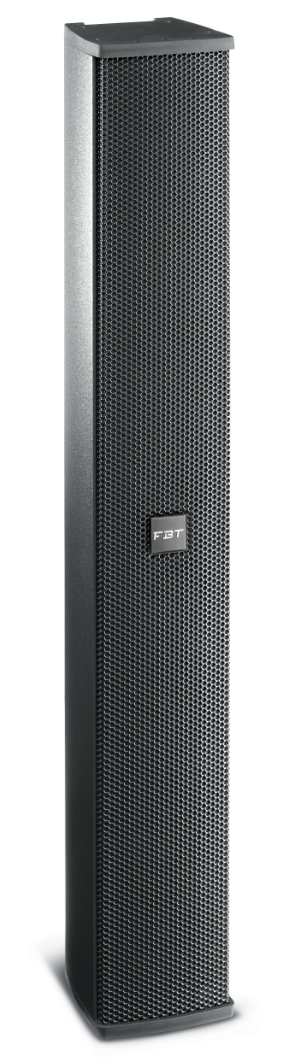

Vertus CLA 803T

IP55, EN54-24 Column Line Array - 240W 119 / 122 dB SPL

Bringing new coverage options to the installed sound market, the new VERTUS CLA (Column Line Array) range boasts EN54-24 certification and IP55 rating together with user switchable vertical dispersion characteristics.

RETAIL:
£729.00 inc VAT
 In Stock ( 10 Available )
SKU: 41806
EAN: 8034138418064
Commodity Code: 85182200
Country of Origin: Italy

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

Bringing new coverage options to the installed sound market, the new VERTUS CLA (Column Line Array) range boastsEN54-24 certification and an IP55 rating, the range has been created to add discreet but powerful sound reinforcement in even the most challenging of projects, including the ability to select dispersion angles depending on the projects requirements.

Suited to both indoor and outdoor use, the VERTUS CLA range comprises two models: the VERTUS CLA 803, with eight 3 full range woofers, and the CLA 403, with four 3" full range woofers. Both versions have the same sleek, lightweight and durable, powder-coated aluminium housing. Completely dustproof and waterproof, the enclosures grille is covered with a special hydrophobic fabric to ensure absolute rejection of all atmospheric agents. Full EN54-24 certification also means both columns can be used for emergency and evacuation applications in the event of a fire, all VERTUS CLA columns are equipped with a ceramic terminal block and thermal fuse.

The range also offers powerful new features for systems integrators facing challenging acoustic conditions. Both the CLA 803 and CLA 403 are characterised by an integrated passive directivity control system which delivers a consistent frequency-based vertical dispersion, and which offers users the choice of two angles

CLA 403 NARROW (110° Horizontal x 25°Vertical) - WIDE (110° Horizontal x 50° Vertical).

CLA 803 NARROW (110° Horizontal x 15°Vertical) - WIDE (110° Horizontal x 40° Vertical).

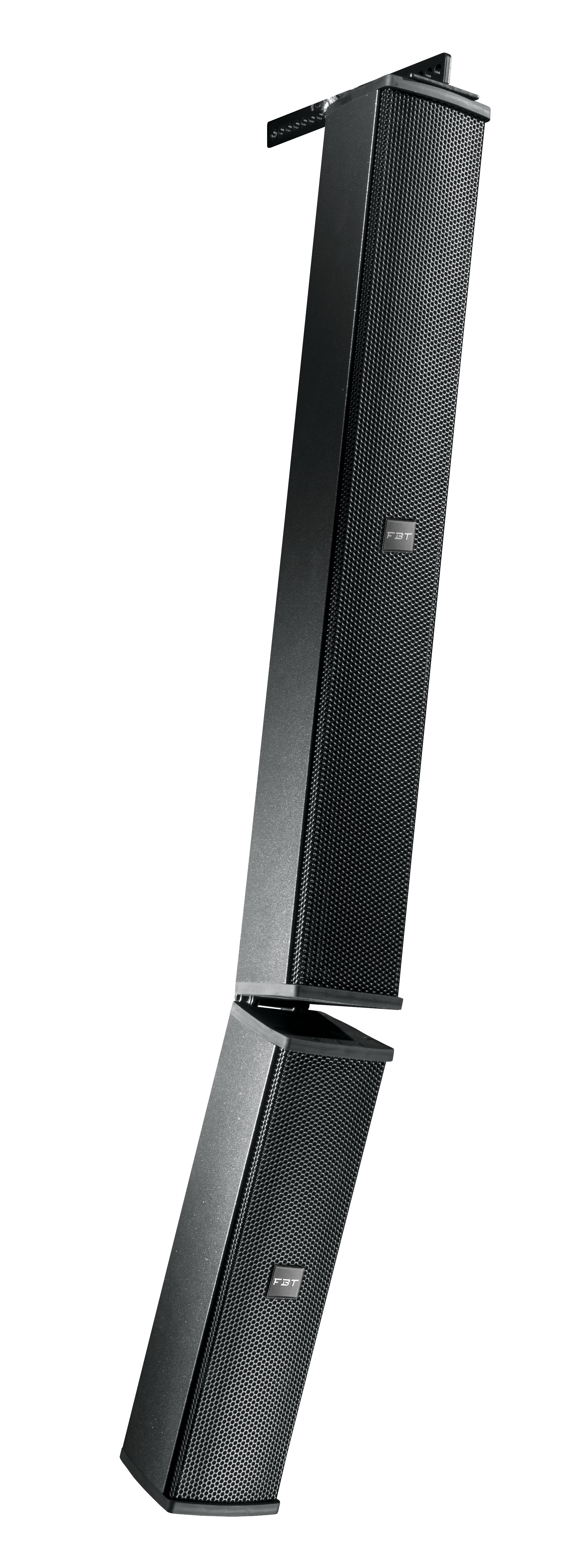

This new functionality guarantees enormous flexibility for the integrator, even allowing for the horizontal mounting of columns. In addition, each VERTUS CLA enclosure is fully modular, so multiple enclosures can be linked to increase low frequency control, high frequency dispersion and overall SPL. Other features include a 100V line transformer with switchable power levels.

A wide range of accessories is also available for total system configuration flexibility, including a bracket with two diffusers offering a 0° - 15° swivel range (in 5° steps); a fixed 0° bracket for assembling straight arrays; a tilting wall-bracket for mounting at up to 20° (V) and 90° (H); and a fixed wall support for near-flush mounting. A flybar is also available (with optional clamp), plus a foldable floor stand. The accessories match to the enclosures with sliding guides and integrated quick release pins for an exceptionally quick, easy and effective installation.

*Available in Black or White



KEY FEATURES
  • Passive column array
  • 8 x 3” full-range custom woofers with 0.7” voice-coils
  • Frequency response from 140Hz to 20KHz

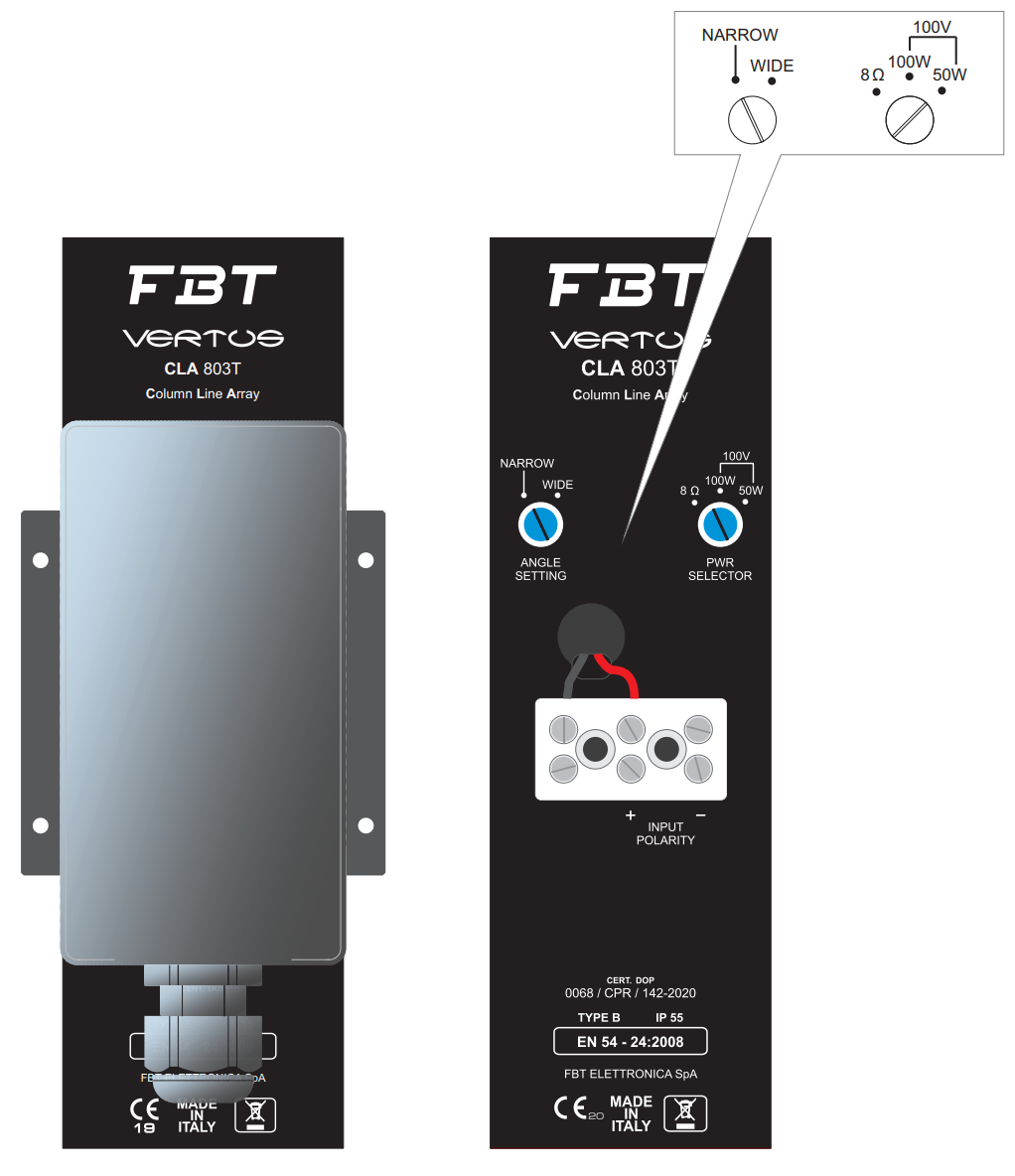

  • Vertical dispersion angle selector: 110° H x 15° V (NARROW), 110° H x 40° V (WIDE)
  • Ceramic screw-in connector with thermal fuse
  • 100V / 120W line transformer with power selector (excludable)
  • Extruded aluminum cabinet with powder coating
  • Grille with hydrophobic fabric
  • Wide availability of accessories for installation
  • Multiple CLA 803 and CLA 403 columns can be linked to increased SPL and coverage
  • IP55 rating means suitable for outdoor installation
  • EN54-24 certification means suitable for emergency and evacuation systems
  • Ideal for fixed installations in reverberant environments where requiring heightened intelligibility of both music and voice
SPECIFICATIONS
Configuration:
1 Way
Frequency response:
140Hz - 20kHz -6dB
Low frequency woofer:
8 x 3" - 0.75" Voice Coil
Input connector:
Ceramic Terminal Block
Net Dimension (WxHxD):
100 x 70 x 125 mm
Net Weight:
4.7 KG
Transport Dimension (WxHxD):
140 x 745 x 165 mm
Transport Weight:
6.3 kG
Recommended Amplifier:
240 W RMS
Long term power:
120 W
Short term power:
480 W
Recommended HP filter:
130Hz 224dB Oct
Maximum SPL continuous/peak:
119 / 122 dB
Nominal Impedance:
8 Ohm
Sensitivity (@1W/1m):
95 dB
Dispersion (H x V):
110 Degrees x 15 Degrees (Narrow Setting) - 110 Degrees x 40 Degrees (Wide Setting)
