PROJECT sound speakers have been created and designed in Italy. Their exclusive design characterises a complete new family of loudspeakers in the Audio Contractor range. They are ideal for any installation: their design allows the loudspeakers to be used in any environment, keeping the same high quality sound throughout. The PROJECT range utilises a compact two-way system guaranteeing high performances, wide dynamics, high fidelity sound reproduction and high voice intelligibility. PROJECT speakers are equipped with an exclusive fully adjustable support bracket for easy installation, to cut costs and save installation time the bracket may be attached to the wall prior to installing the loudspeaker and is provided with a safety cable . Connection to the loudspeakers is via plug in “Euroblock” connector and adjustment of loudspeaker output is made via screwdriver adjustable switch.

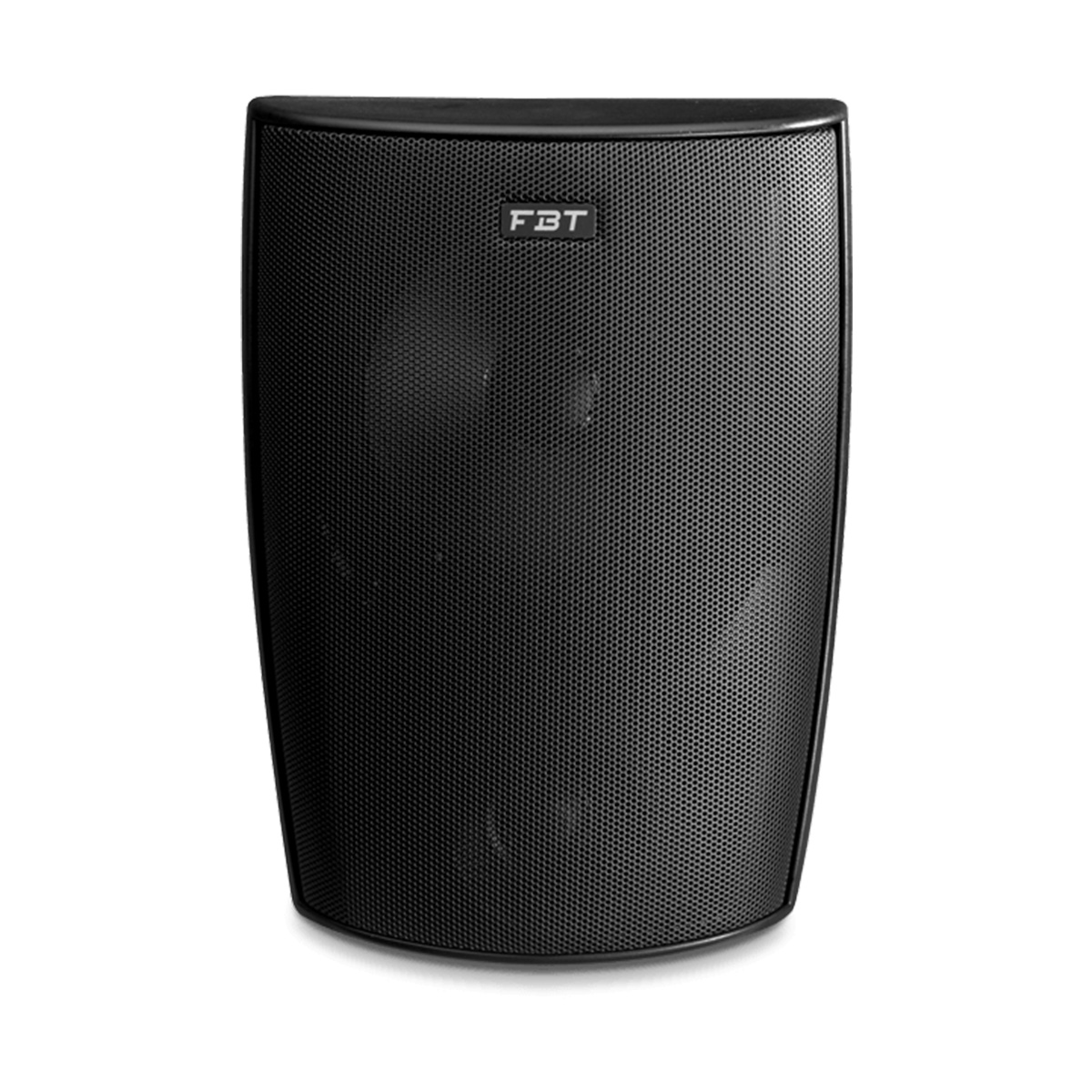

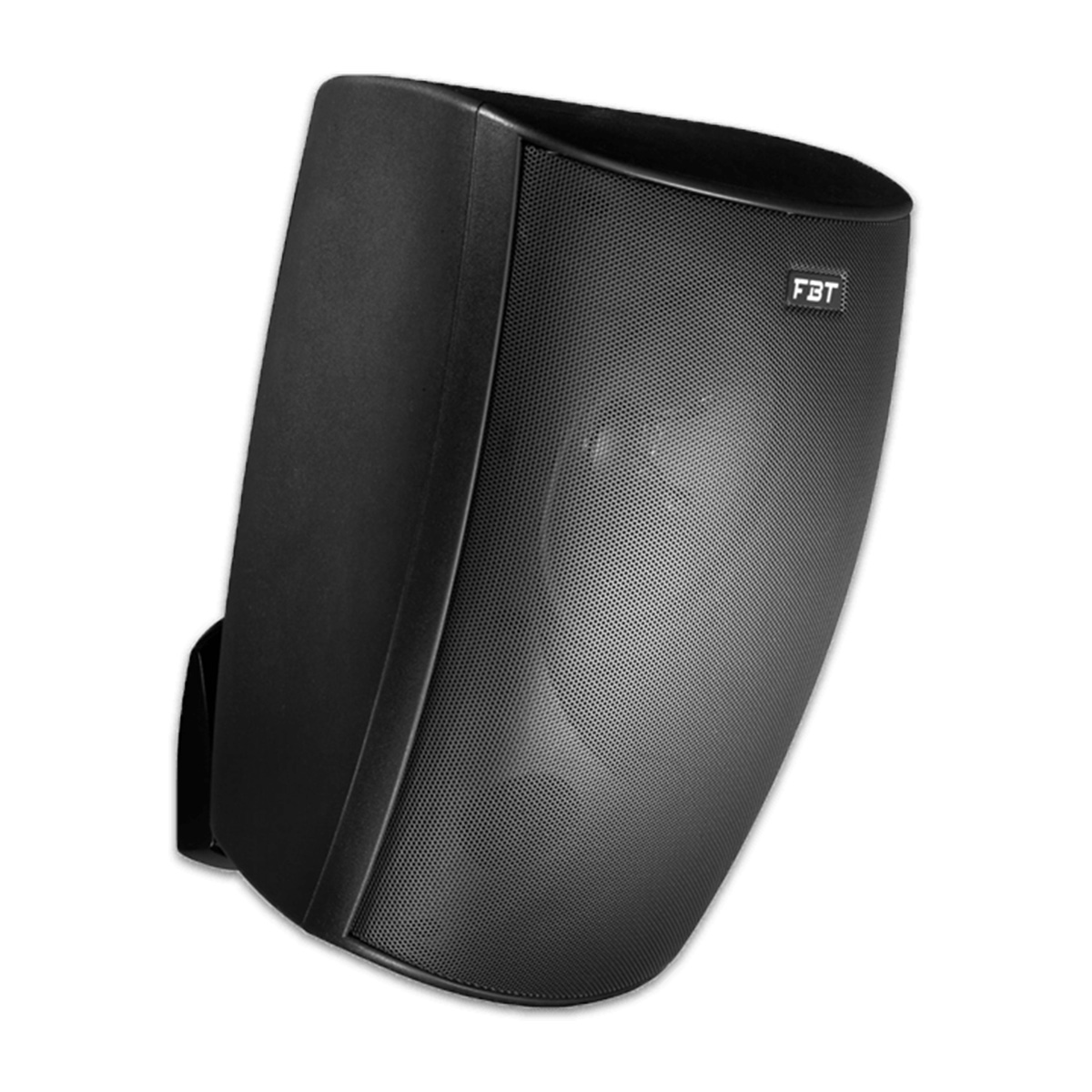

Project 640
40w 2 WAY BASS REFLEX SPEAKER UNIT
PROJECT 640 6.5 woofer and 1 tweeter passive installation speakers feature a fully adjustable support bracket for easy installation. Connection is via a Euroblock connector. 8 Ohm and 100V - Recommended Amplifier: 80W RMS. Long Term Power: 40 Watts. Short Term Power: 100w 100V Transformer: 10, 20, 30, 40W 108dB SPL
Available in Black or White
SKU: 29227
EAN: 8034138292275
Commodity Code: 85182200
Country of Origin: China
PRODUCT DESCRIPTION
KEY FEATURES
Features:
Recommended Amplifier: 80w RMS
Long Term Power: 40w
Short Term Power: 160w
Transformer: 10, 20, 30, 40W
Sensitivity (1W/1m): 89dB
Recommended HP filter: 40Hz -24dB oct.
Specification:
Code: | 29227 BT / 32370 WHT |
Configuration: | 2 way |
Recommended amplifier: | 80 W RMS |
Long Term power: | 40 W |
Short term power: | 160 W |
Transformer: | 10-20-30-40 V |
Nominal impedance: | 8 ohm |
Frequency response: | 70Hz-20kHz -6dB |
Low Frequency woofer: | 6.5 inch |
Sensitivity (@1W/1m): | 89 dB |
Maximum SPL cont/peak: | 108 dB |
Dispersion: | 90x90 HxV |
Recommended HP filter: | 40Hz-24dboct |
Input connector: | Euroblock |
Net Dimension (WxHxD): | 218x312x219 mm/inch |
SPECIFICATIONS
Net Dimension (WxHxD):
218 x 312 x 219mm
Configuration:
2 way
Recommended Amplifier:
80 W RMS
Long Term Power:
40 W
Short Term Power:
160 W
Sensitivity (@1W/1M:
89 dB
Impedance:
8 Ohm
Frequency Response:
70Hz-20kHz -6dB
Low Frequency Woofer:
6.5 inch
Maximum SPL Cont/Peak:
108 dB
Dispersion:
90x90 HxV
Input Connector:
Euroblock
