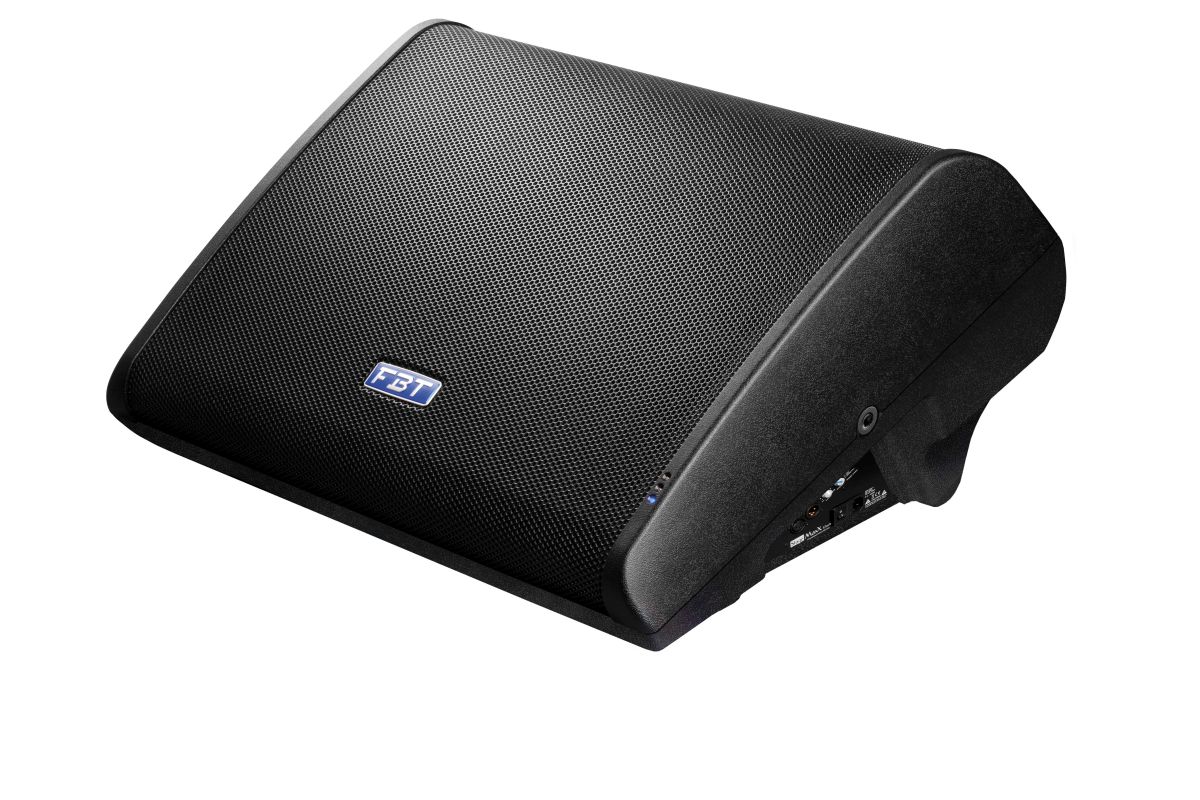

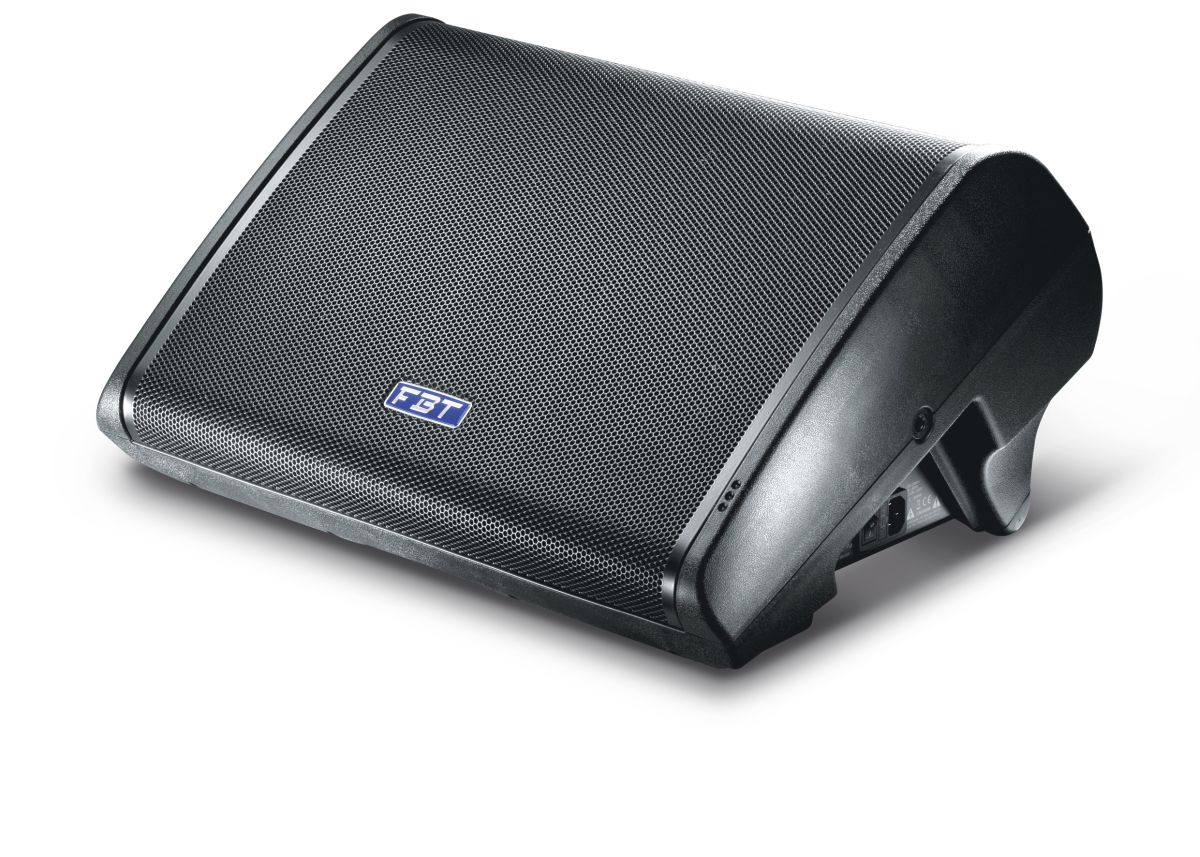

StageMaxx 12MA

12" + 1" Coaxial Active Stage Monitor 400w + 100w

The StageMaxX 12 MA is a Processed Active Reinforcement Stage Monitor. Featuring a 400W + 100W RMS amp module delivering 130dB SPL. inside we have a Coaxial custom FBT 12” B&C speakers with 64mm (2.5”) voice coil with a B&C 25mm (1”) exit throat compression driver and 44mm (1.7”) voice coil, outside we have a sturdy gas-injected polypropylene molded enclosure to avoid undesired resonance. All proudly made in Italy. Black finish
RETAIL:
£998.00 inc VAT
 In Stock ( 5 Available )
SKU: 35965
EAN: 8034138359657
HS Code: 85185000
Country of Origin: Italy

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
PRODUCT DESCRIPTION

Processed Active Reinforcement Monitor

400W + 100W RMS – 130dB SPL


The 4 presets are:

ORIGINAL: is the typical “MaxX” sound adapted to “STAGE” application
HI-CUT / DRUM FILL: provides less mid-high for a comfortable listening in near-field at high level
LO-CUT / DOUBLE: provides less low frequency for better intelligibility and for optimal coupling in stereo configuration

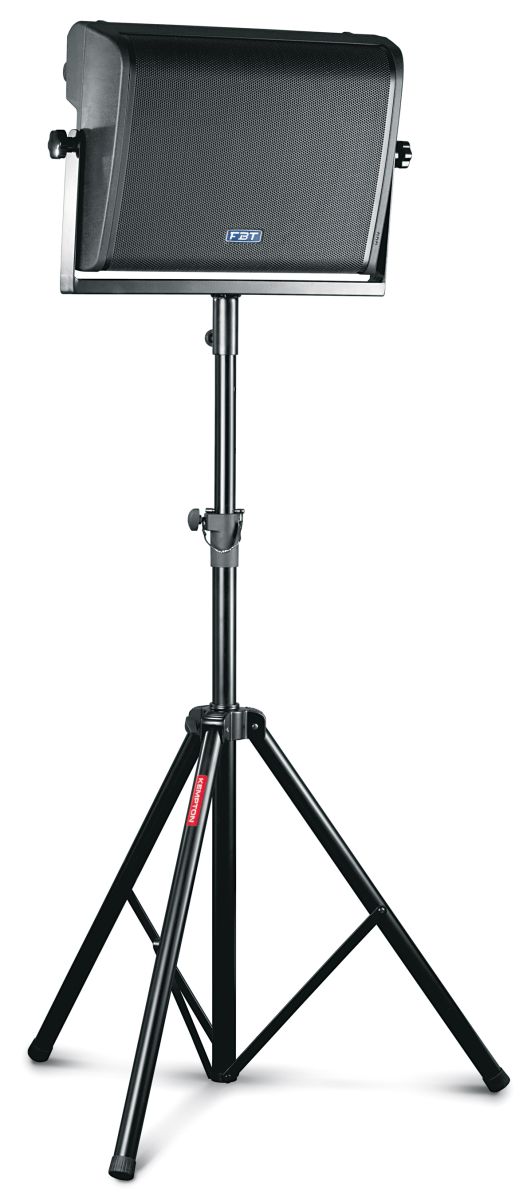

FOH: Front Of House use in suspended or pole-mount installations


MaxX More! The new stage monitor without compromise

FBT’s new StageMaxX 12Ma has been inspired by the need to have a product specifically designed and engineered for use as stage monitor, overcoming all these compromises for a full user satisfaction.
  • Low profile and aesthetic elegance
  • Compact size
  • Frequency response studied for stage monitor applications
  • High headroom before feedback
  • High sound quality
  • Great power and dynamics
  • Symmetric dispersion
  • Aligned LF and HF acoustic centers
  • Easy handling on stage
  • Lightweight
  • Heavy-duty polypropylene cabinet
KEY FEATURES
MaxX More! The new stage monitor without compromise

FBT’s new StageMaxX 12Ma has been inspired by the need to have a product specifically designed and engineered for use as stage monitor, overcoming all these compromises for a full user satisfaction.
  • Low profile and aesthetic elegance
  • Compact size
  • Frequency response studied for stage monitor applications
  • High headroom before feedback
  • High sound quality
  • Great power and dynamics
  • Symmetric dispersion
  • Aligned LF and HF acoustic centers
  • Easy handling on stage
  • Lightweight
  • Heavy-duty polypropylene cabinet
SPECIFICATIONS
Configuration:
2 Way
Frequency response:
60hz - 20 kHz
Low frequency woofer:
12"
High frequency driver:
1"
Maximum SPL cont/peak:
124 / 130dB
Dispersion:
90 x 90 (HxV)
Input impedance:
22kohm
Crossover frequency:
1.8kHz

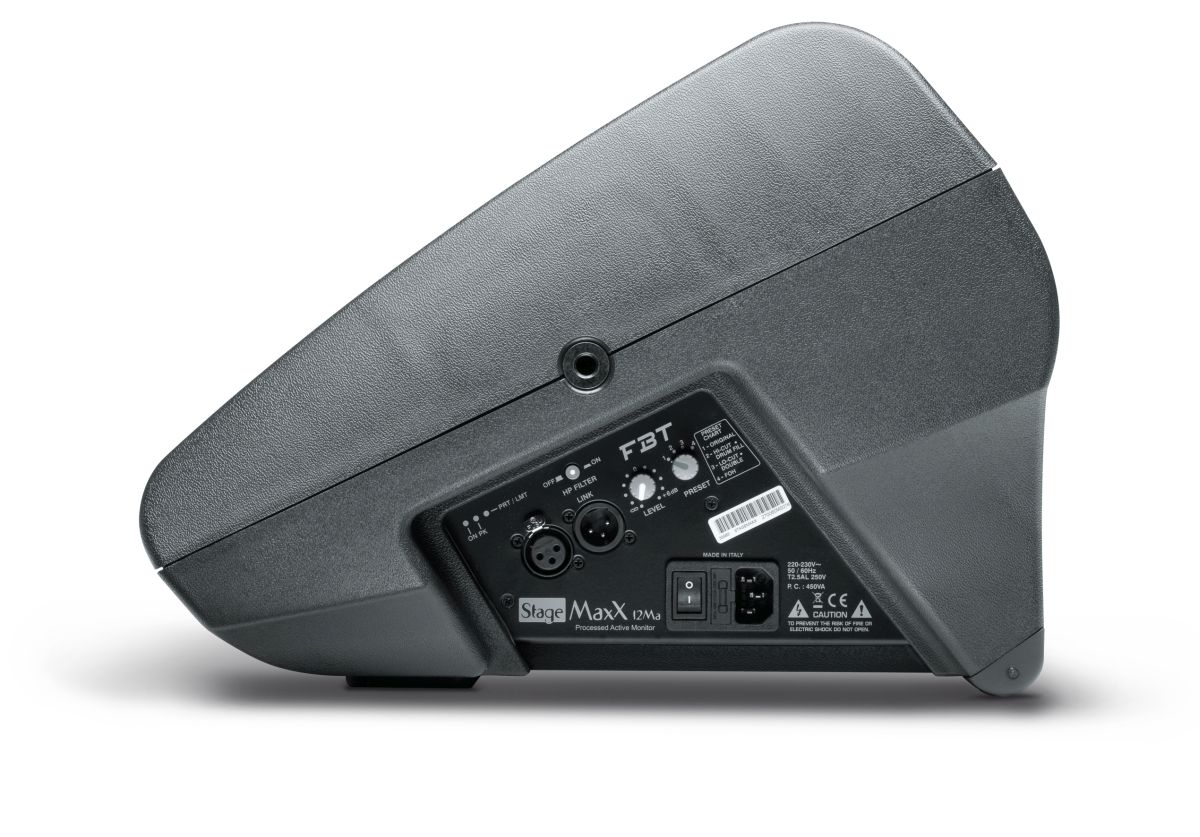

Input connector:
XLR with link out
Net Dimension (WxHxD):
550 x 289 x 392mm
Net Weight:
13.6 kg
Transport Dimension (WxHxD):
670 x 430 x 500mm
Transport Weight:
16.4kg
AC Power requirements:
450VA
Built-in amplifier LF/HF:
400/100w RMS
Built-in amplifier peak LF/HF:
800/200w
Power cord:
5m PowerCon True1
